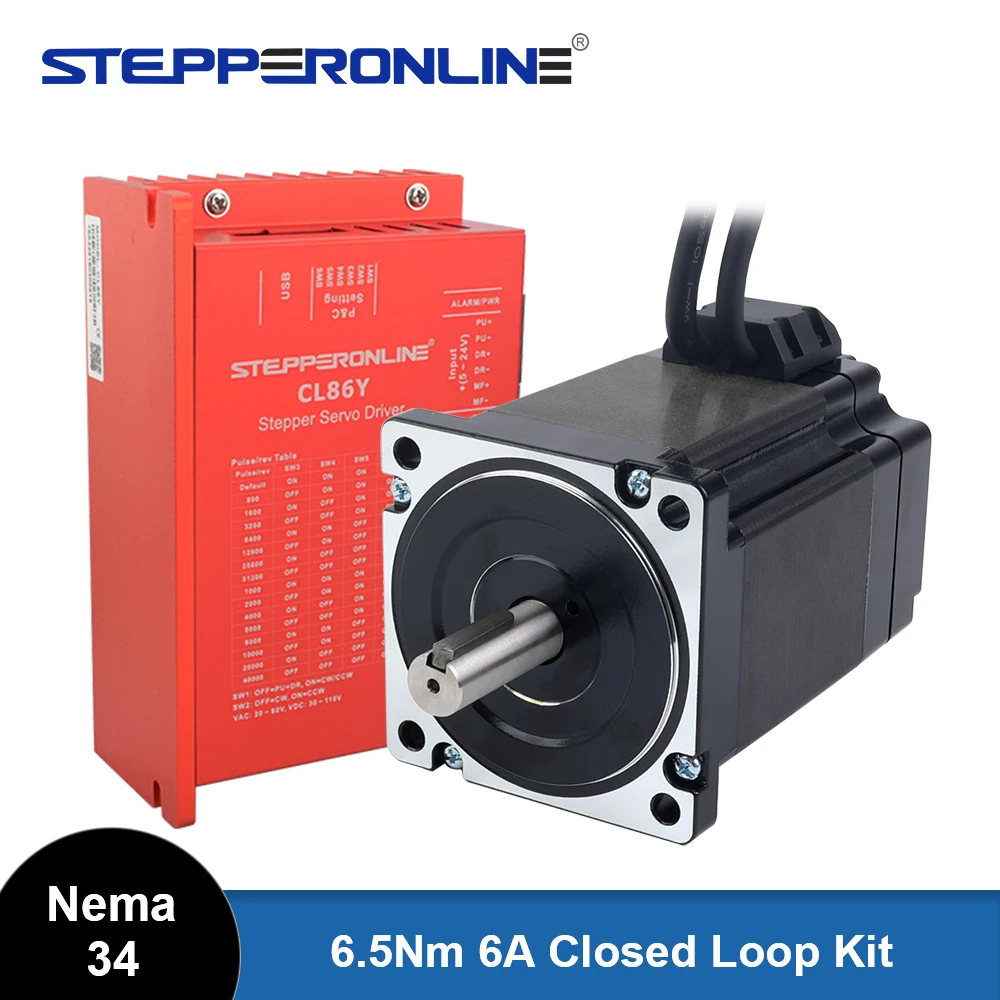

STEPPERONLINE NEMA 34 Closed Loop Stepper Kit, 6.5 N·m, CL86Y Driver
STEPPERONLINE NEMA 34 closed-loop stepper motor with encoder (6.5 N·m / 920 oz·in holding torque, 6.0 A per phase, 14 mm shaft) plus the matching CL86Y driver, for CNC routers and cutting machines. The driver accepts 20–80 VAC or 30–110 VDC.
Specifications (from the manufacturer’s listing)
| EU LVD Voltage | Low voltage: Below 50Vac or 75Vdc |
|---|---|
| Step Angle(degrees) | 1.8 deg |
| Phase | 2 |
| Holding Torque | 6.50Nm(920.48oz.in) |
| Current / Phase | 6.0 A |
| Shaft Diameter | 14 mm |
| Shaft Length | 37 mm |
| D-Cut Length | 25mm |
| Product Type | Nema 34 Closed Loop Stepper Motor |
| Encoder Type | Optical Incremental |
| Output Circuit Type | Differential |
| Encoder Resolution | 1000PPR |
| Output Signal Channels | 2 |
| Frame Size | Nema 34 (86 x 86mm) |
| Body Length | 120mm |
What’s in the box

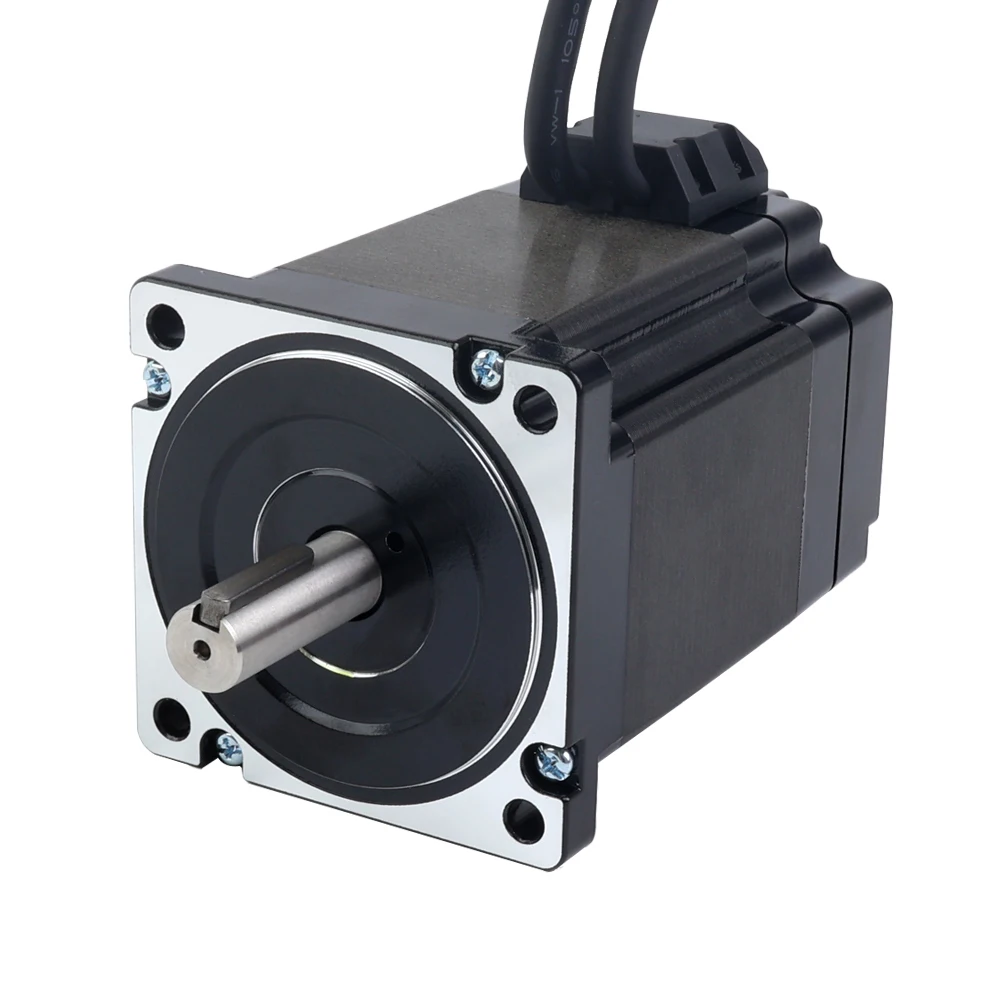

- 1 × NEMA 34 closed-loop stepper motor with encoder (model 1-CL86Y-S65-1M5 kit)

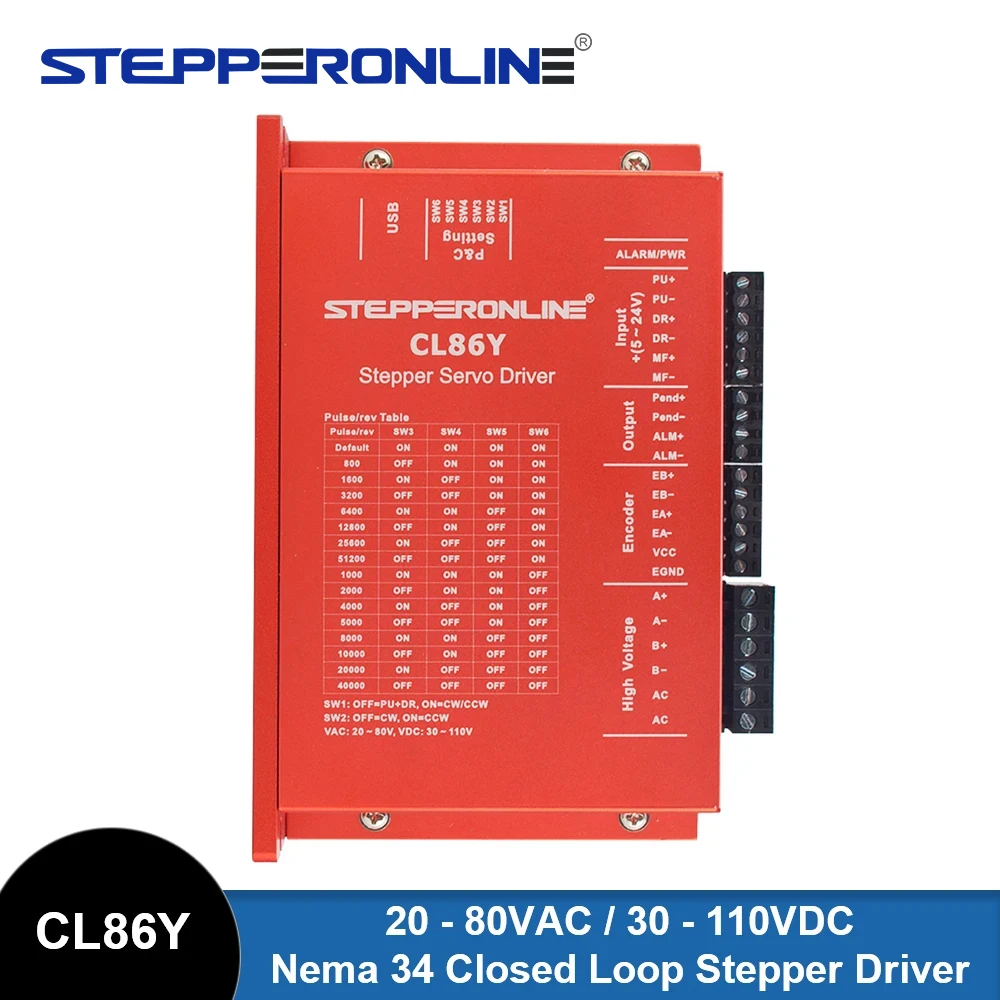

- 1 × CL86Y closed-loop driver
- Encoder extension cable
- Power supply not included
