STEPPERONLINE NEMA 23 Integrated Servo Motor, 130W, 20–50VDC

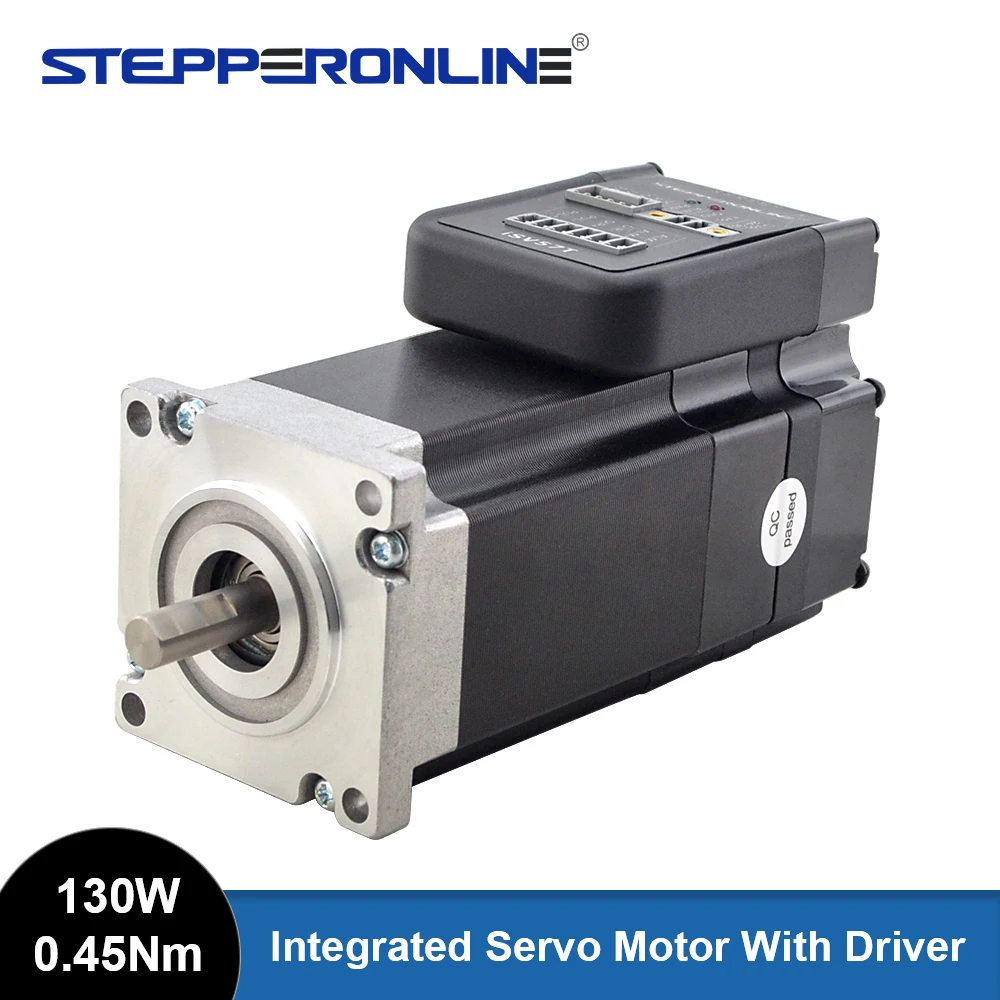

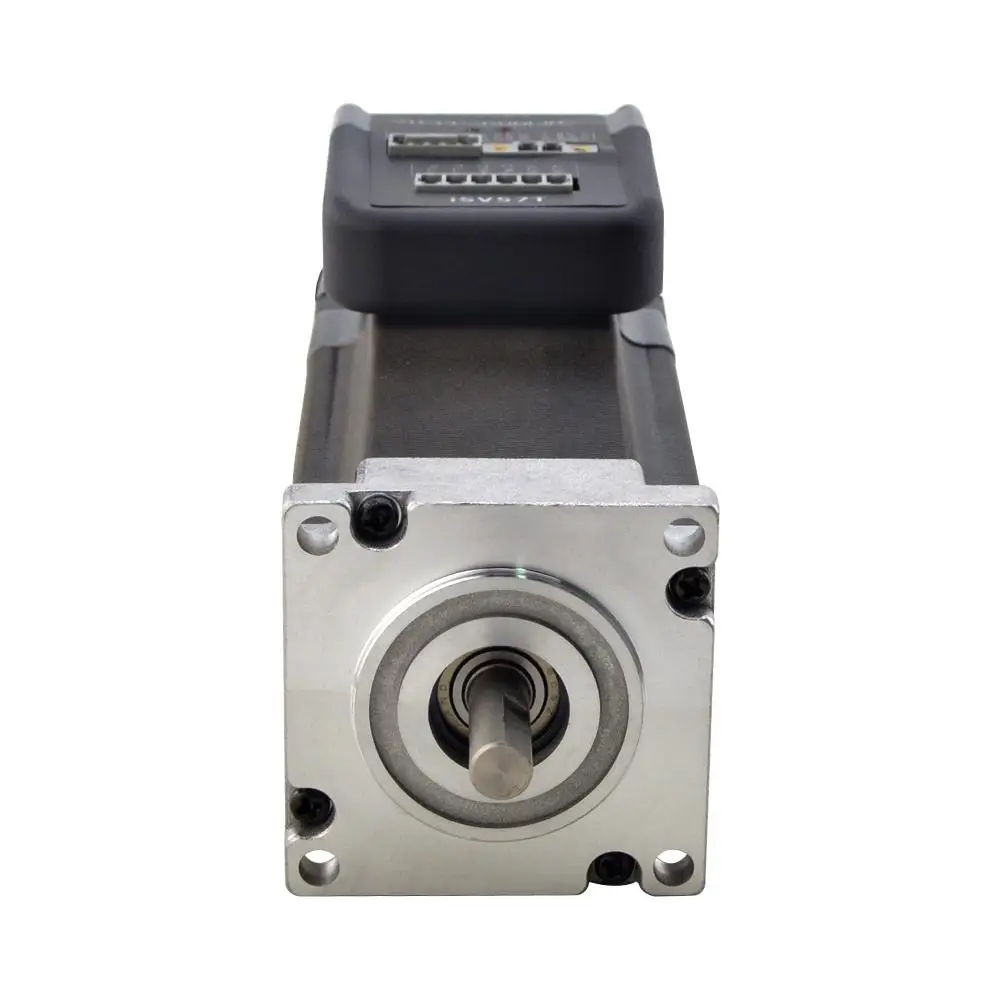

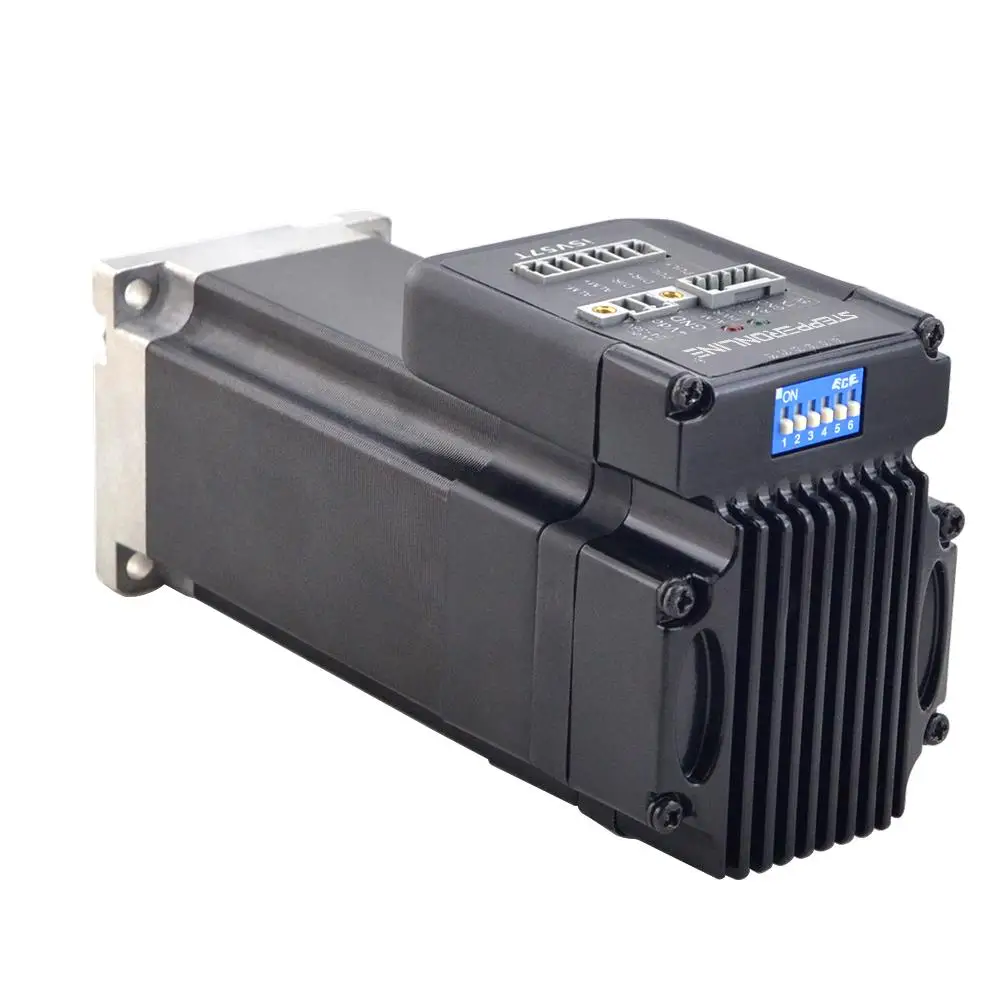

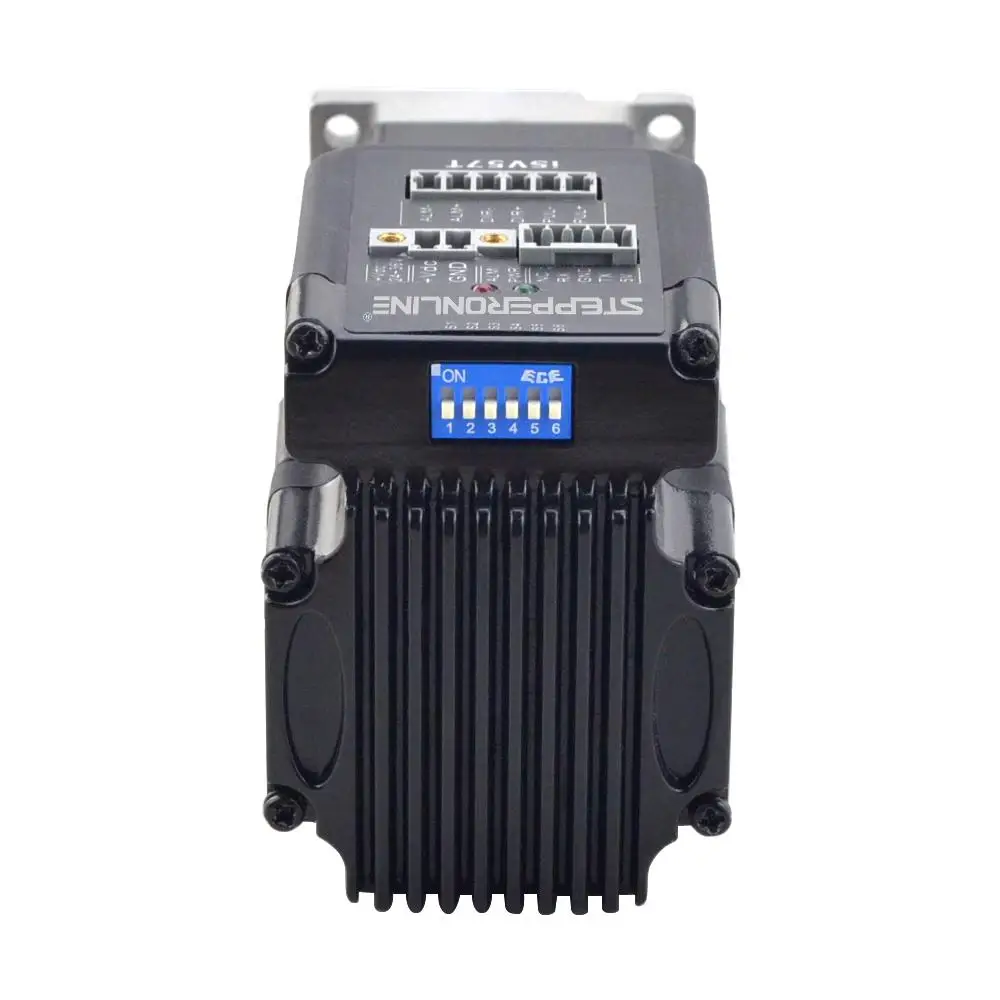

STEPPERONLINE iSV57T-130S brushless servo motor with integrated 16-bit encoder and drive: 130 W, 0.45 N·m rated (1.1 N·m peak), 3000 rpm, 8 mm shaft. Powered by a 20–50 V DC supply (not included).
Specifications (from the manufacturer’s listing)
| EU LVD Voltage | Low voltage: Below 50Vac or 75Vdc |
|---|---|
| Isolation Resistance | 100MΩ |
| Rated Torque | 0.45Nm (63.73oz.in) |
| Peak Torque | 1.1Nm (155.8oz.in) |
| Rated Speed | 3000rpm |
| Rated Power | 130W |
| Output Peak Current | 0~6A |
| Shaft Diameter | 8 mm |
| D-cut Shaft Length | 15 mm |
| Shaft Length | 21 mm |
What’s in the box

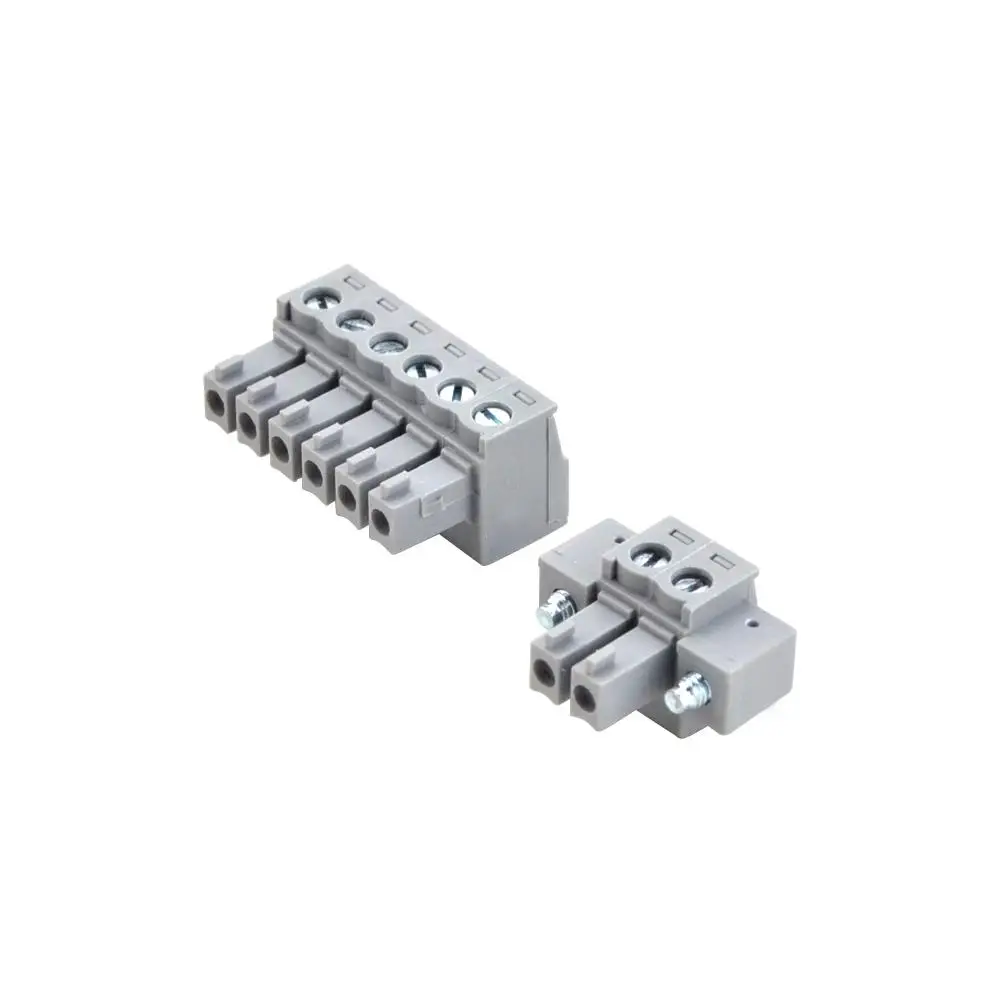

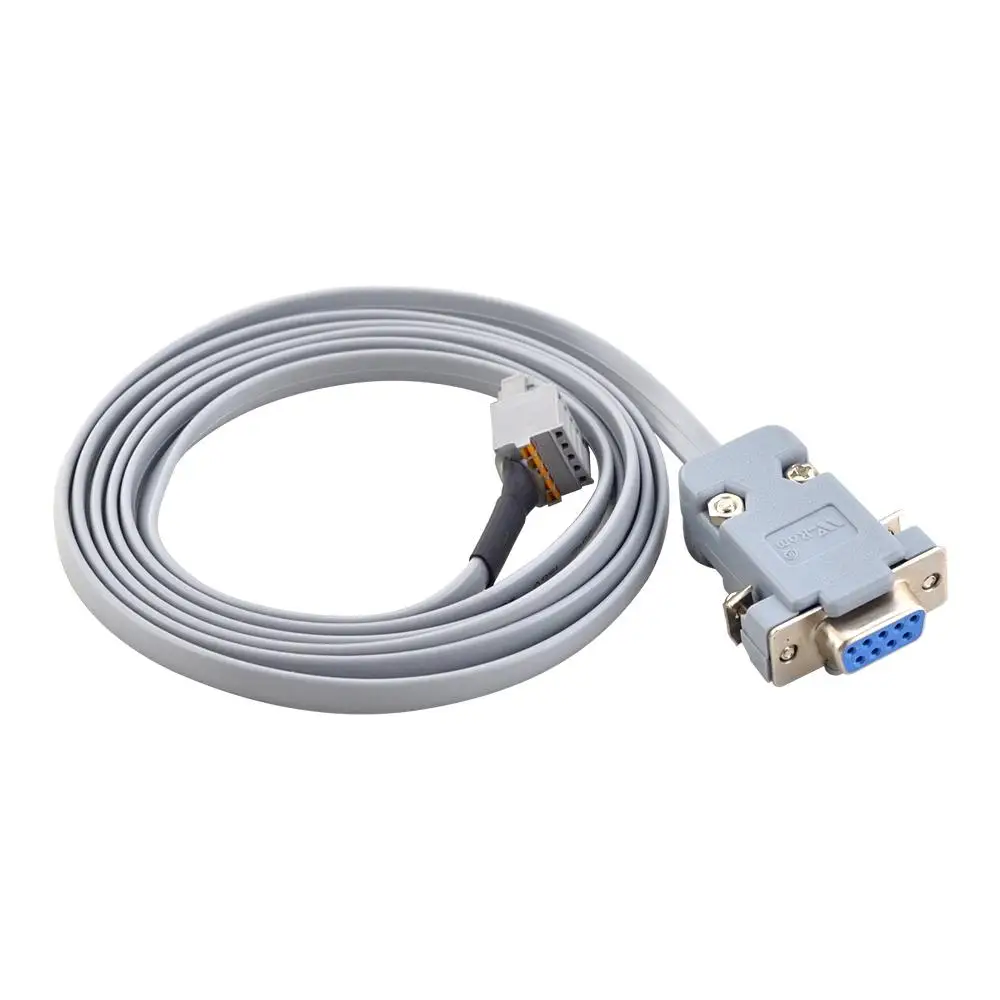

- 1 × iSV57T-130S integrated servo motor with the connectors and cable shown in the photos
- DC power supply not included
Shipping
Ships from a warehouse in the United States. Free shipping. Estimated delivery: 1–9 business days.
