Description

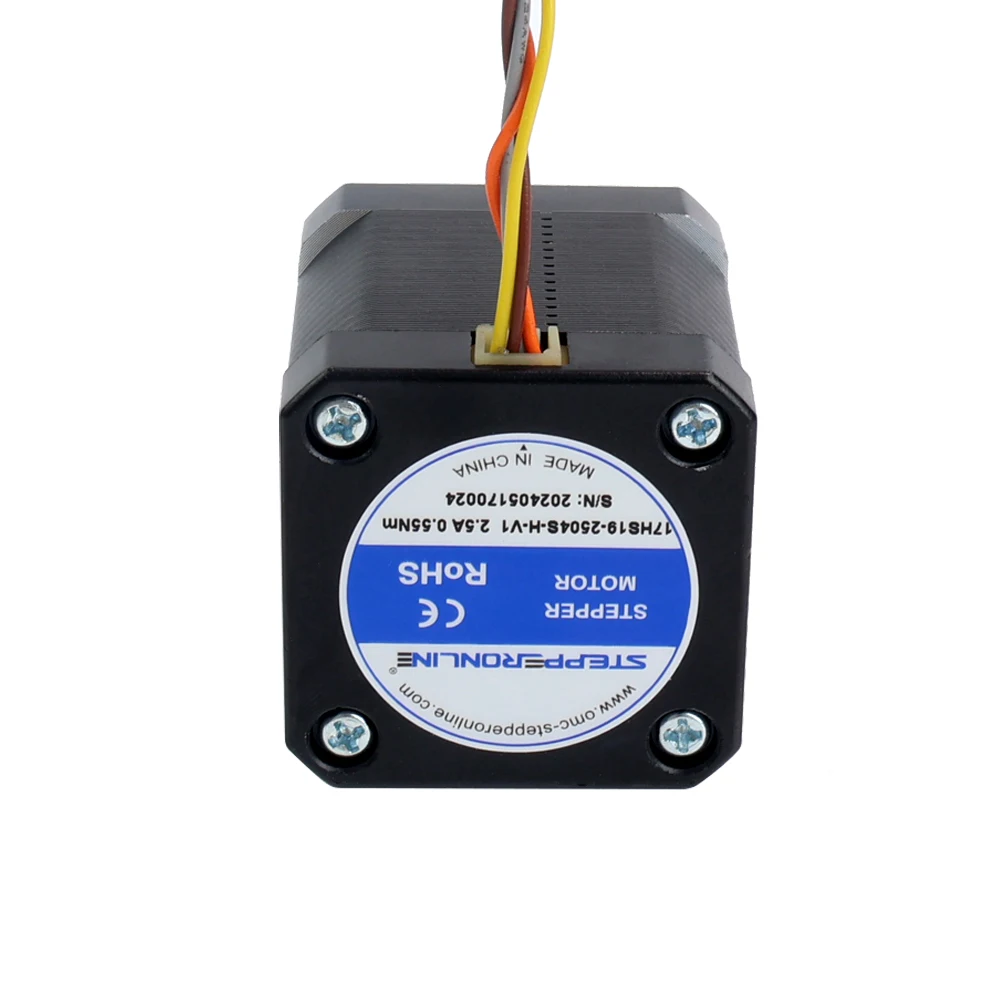

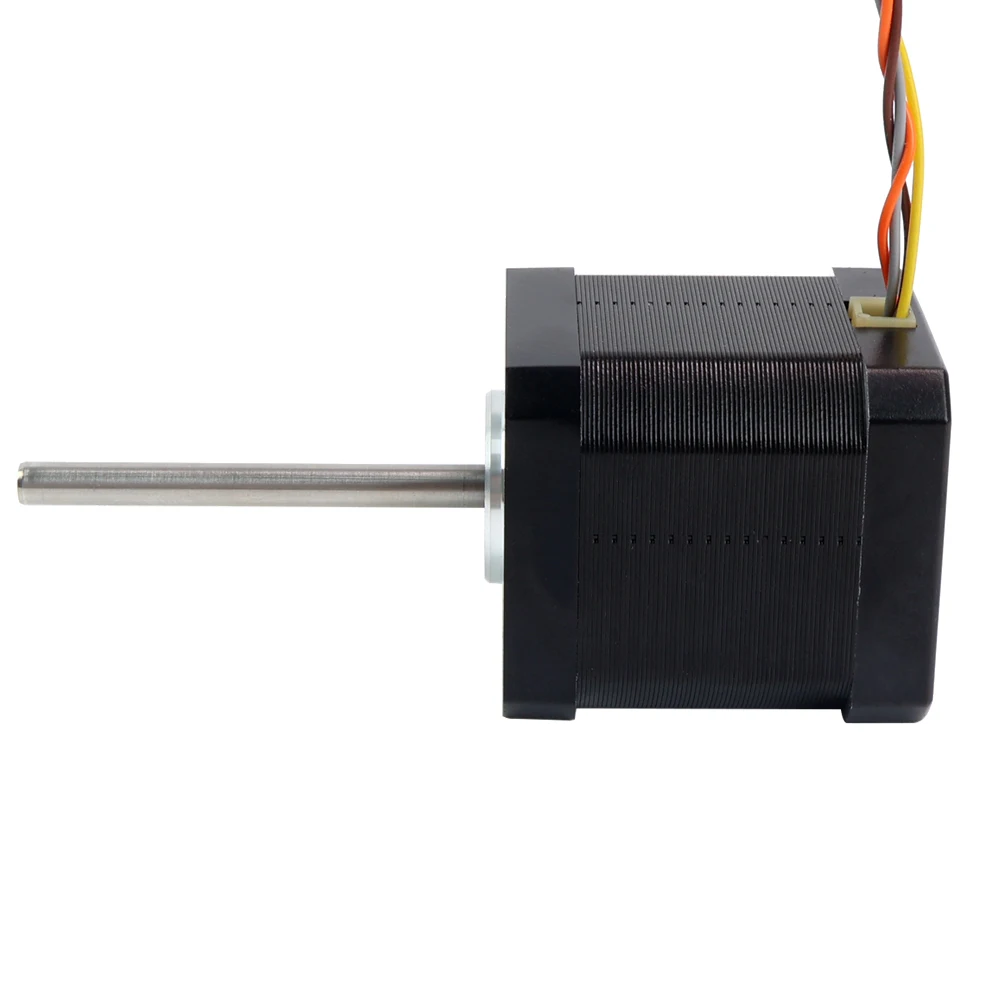

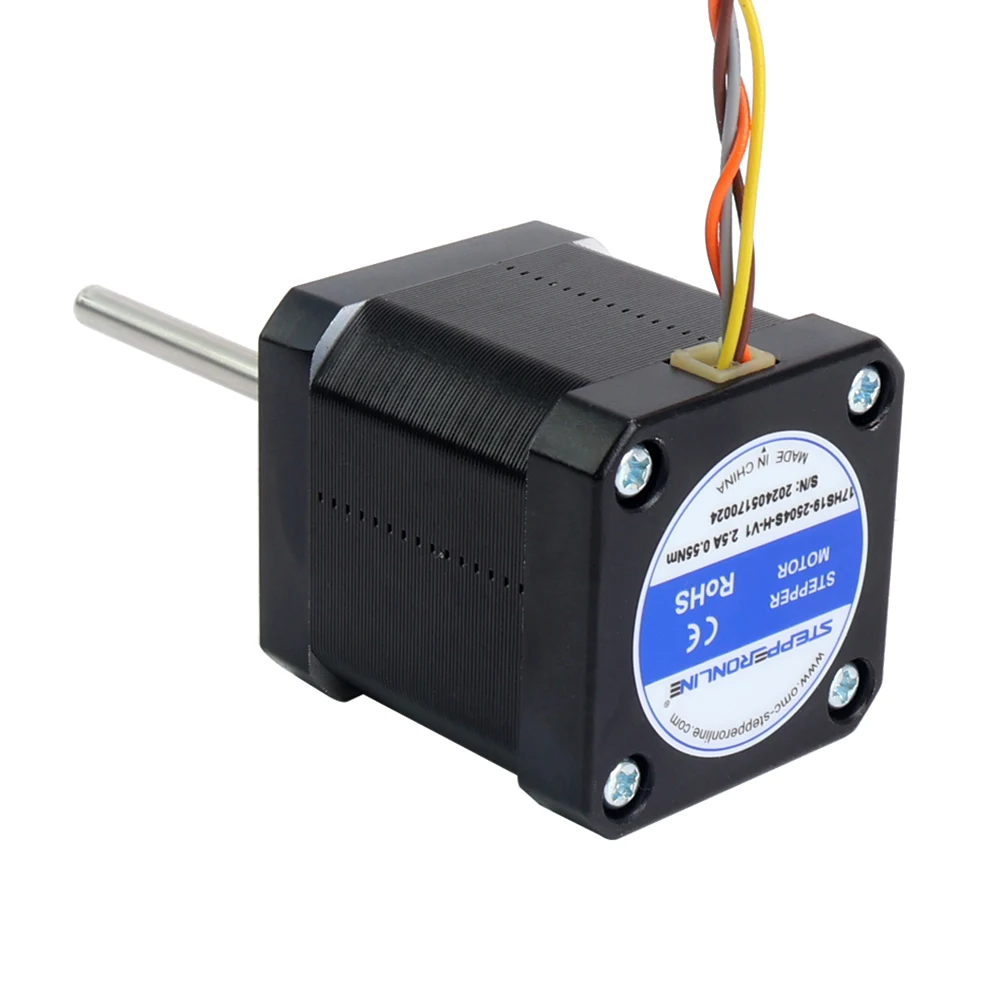

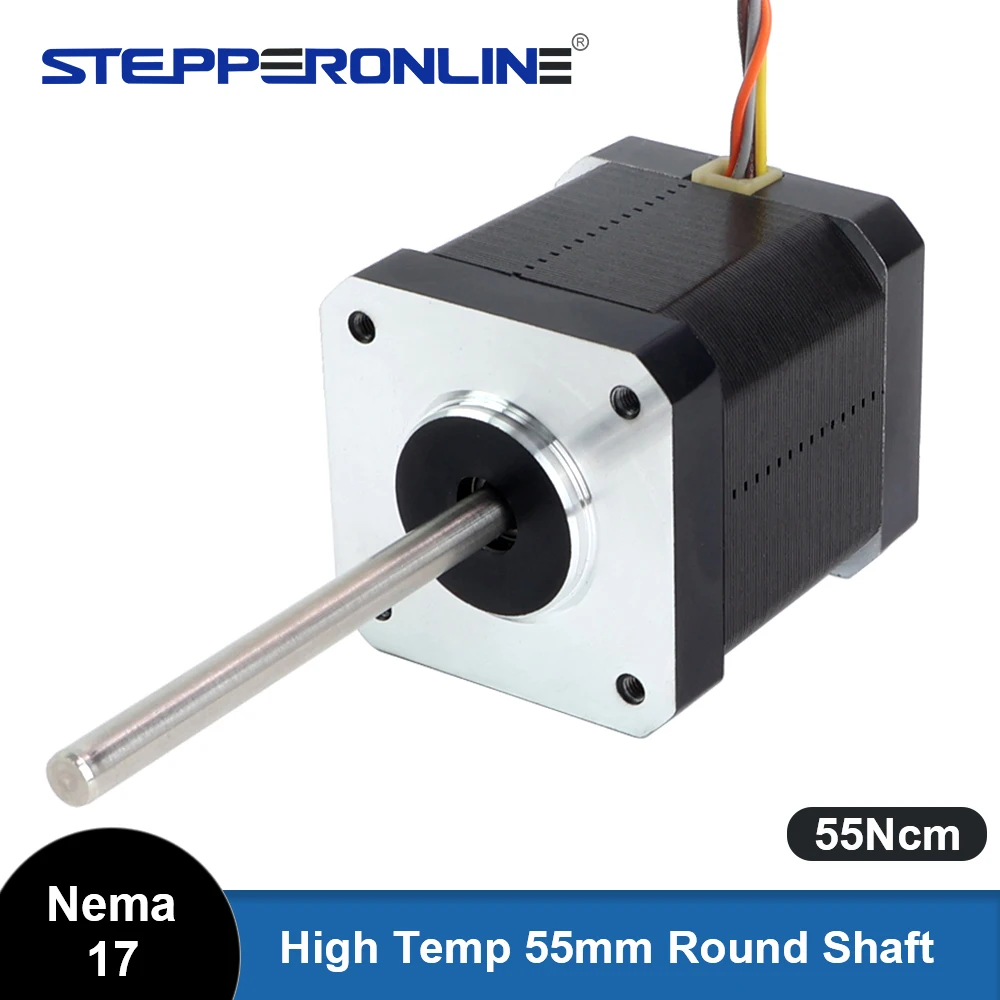

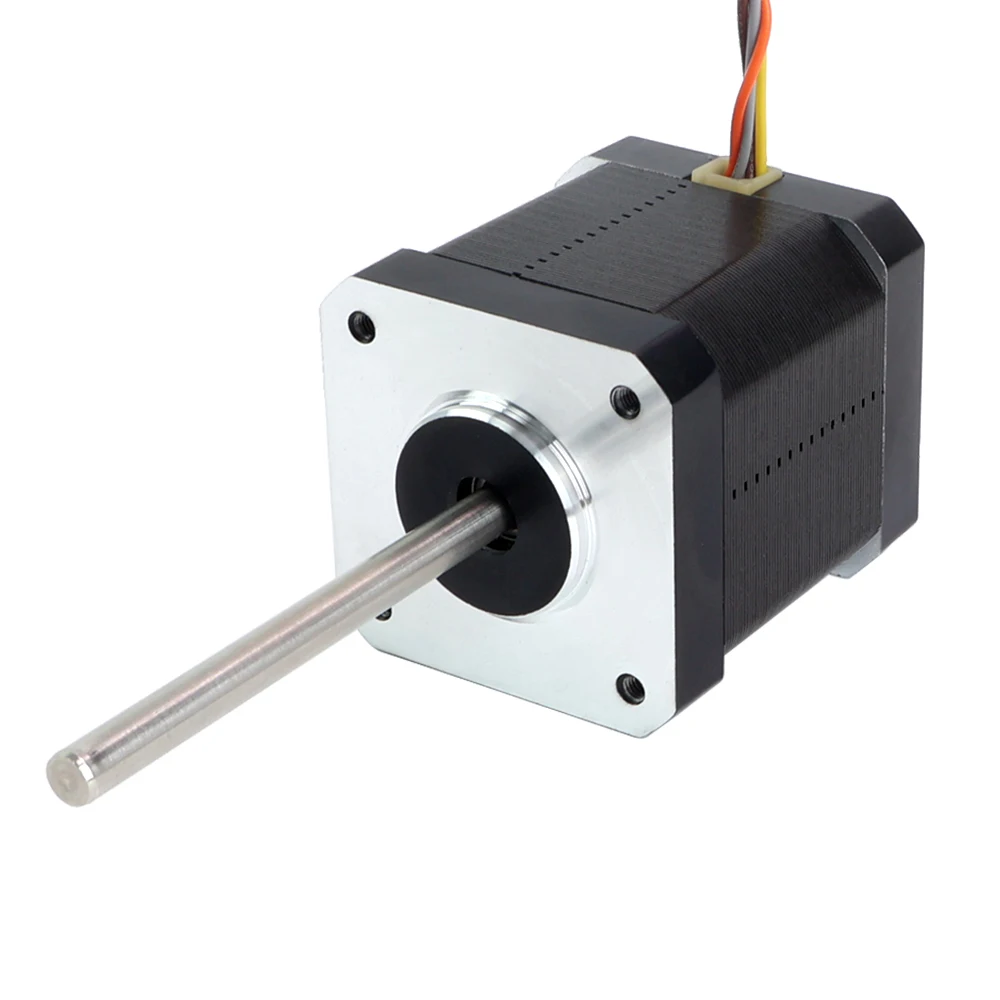

STEPPERONLINE NEMA 17 Stepper Motor, 55 Ncm, High-Temp
STEPPERONLINE NEMA 17 bipolar stepper motor (17HS19-2504S-H-V1) for 3D printers: 1.8° step, 55 N·cm (77.93 oz·in) holding torque, 2.5 A per phase, 5 mm round shaft 55 mm long, class H insulation rated to 180 °C (356 °F). 1 m cable.
Specifications (from the manufacturer’s listing)
| EU LVD Voltage | Low voltage: Below 50Vac or 75Vdc |
|---|---|
| Step Angle(degrees) | 1.8deg |
| Phase | 2 |
| Holding Torque | 55Ncm(77.93oz.in) |
| Current / Phase | 2.5A |
| Inductance | 1.6mH±20%(1KHz) |
| Phase Resistance | 1.1ohms |
| Shaft Diameter | 5mm |
| Shaft Length | 55mm |
| Shaft Type | Round |
| Size | 42*42*48mm |
| Insulation Class | H 180C(356F) |
What’s in the box
- 1 × NEMA 17 stepper motor with 1 m cable
