SFU1605 Ball Screw Manual Linear Stage with Handwheel, 100–300 mm

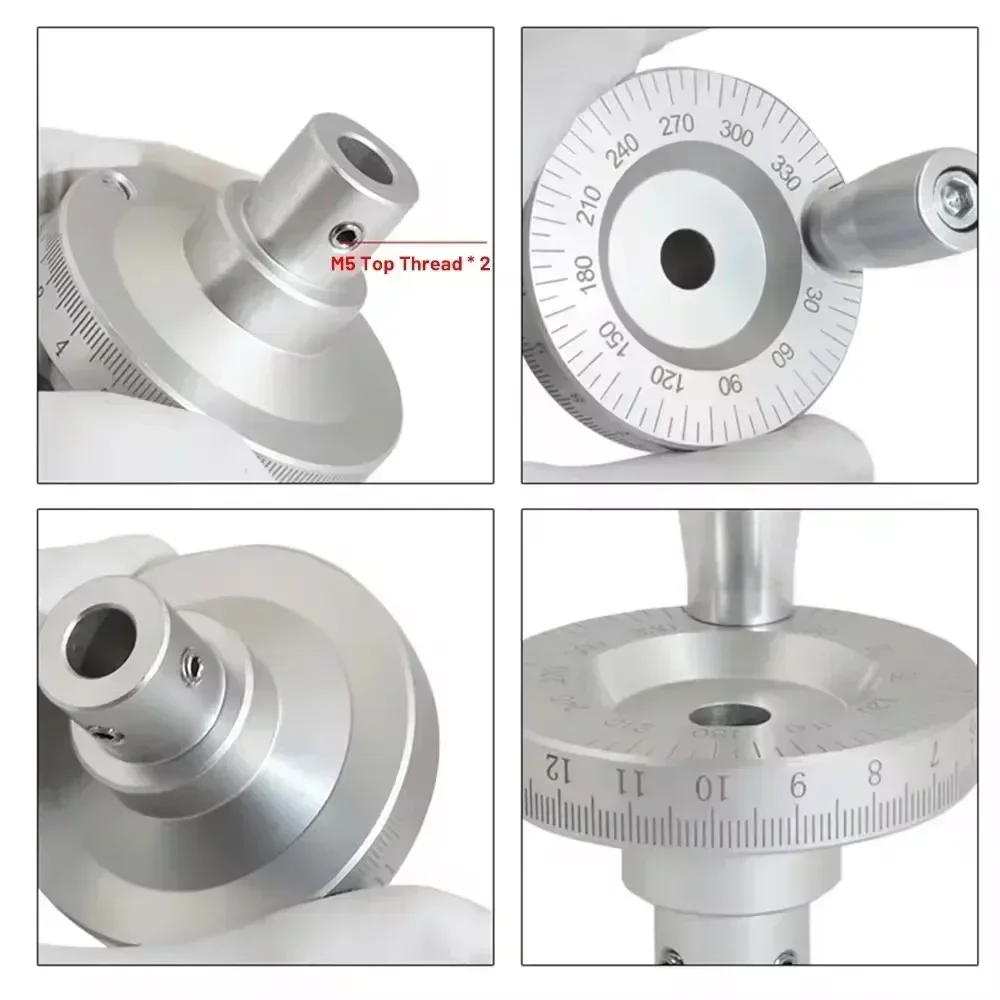

Manual linear stage with an SFU1605 C7 ball screw (16 mm diameter, 5 mm per turn), twin 12 mm guide rods, an aluminum profile body and a graduated handwheel. Repeat positioning 0.03–0.05 mm; up to 40 kg horizontal and 20 kg vertical load, per the manufacturer. Choose the model and a 100, 200 or 300 mm stroke.
Specifications (from the manufacturer’s listing)
| Guide Width or Diameter | 16mm |
|---|---|
| Ballscrew type | SFU1605 |
| Ballscrew accuracy | C7 level |
| Effective stroke | 100mm-300mm Optional |
| Maximum speed | 100mm/s |
| Repeat positioning accuracy | 0.03-0.05mm |
| Horizontal load | 40KG (Max) |
| Vertical load | 20KG(Max) |
| Slide Material | Industrial Aluminum Profile |
| Guide Type | 2*12mm optical axis rod |
| Product type 1 | Linear Rail |
| Product type 2 | CNC Table |
| Product type 3 | Double Rail Sliding Table |
Available options

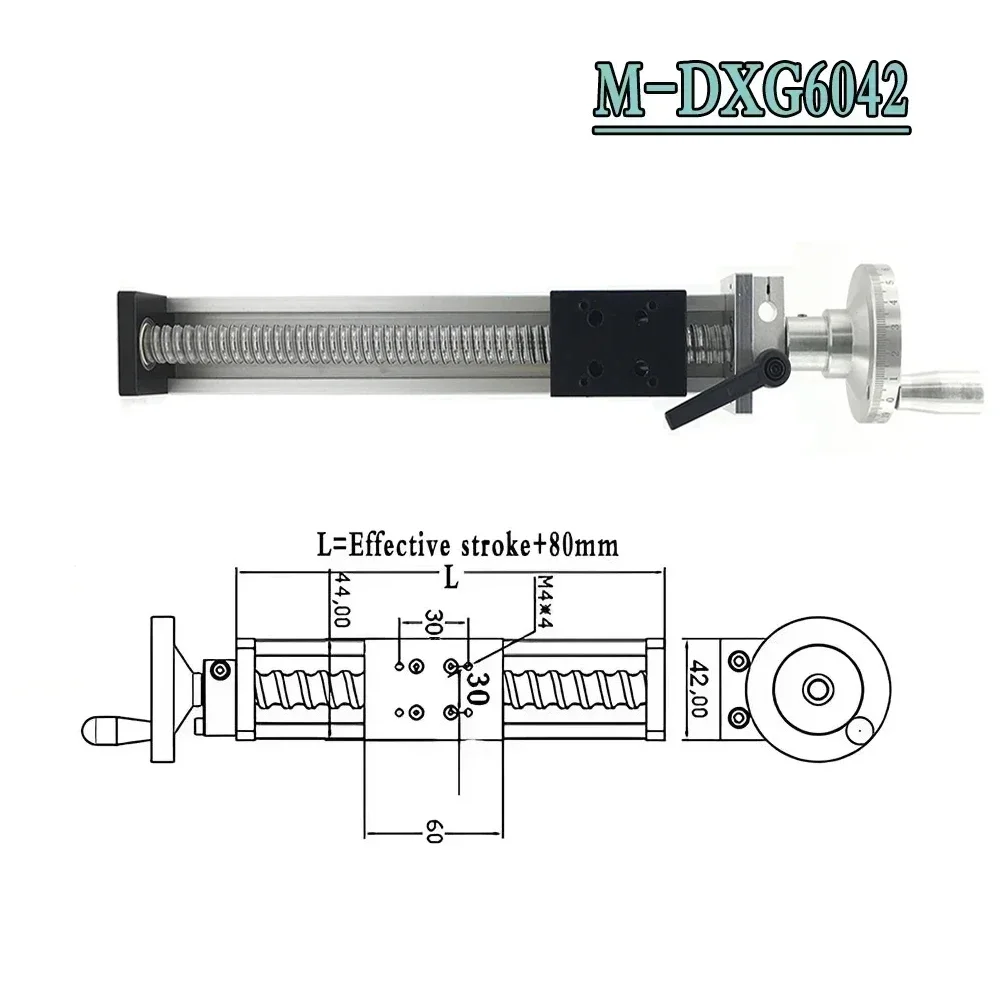

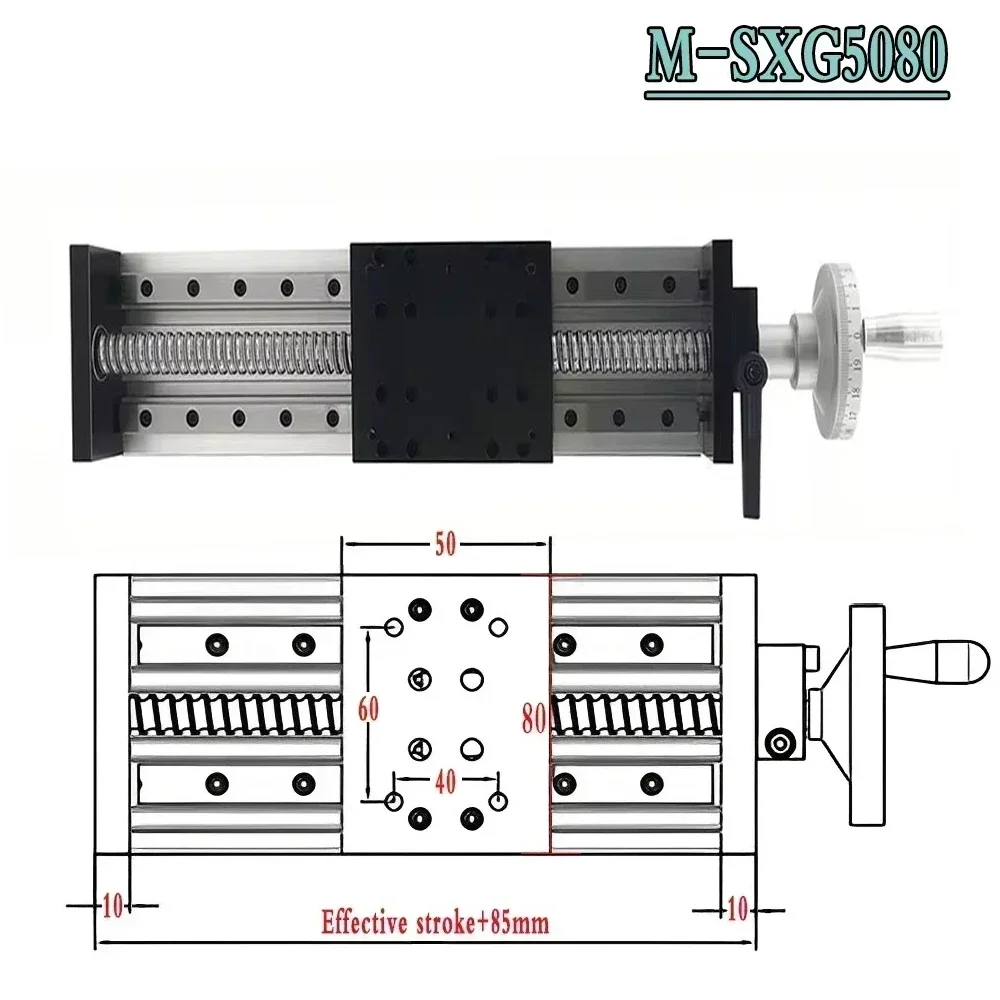

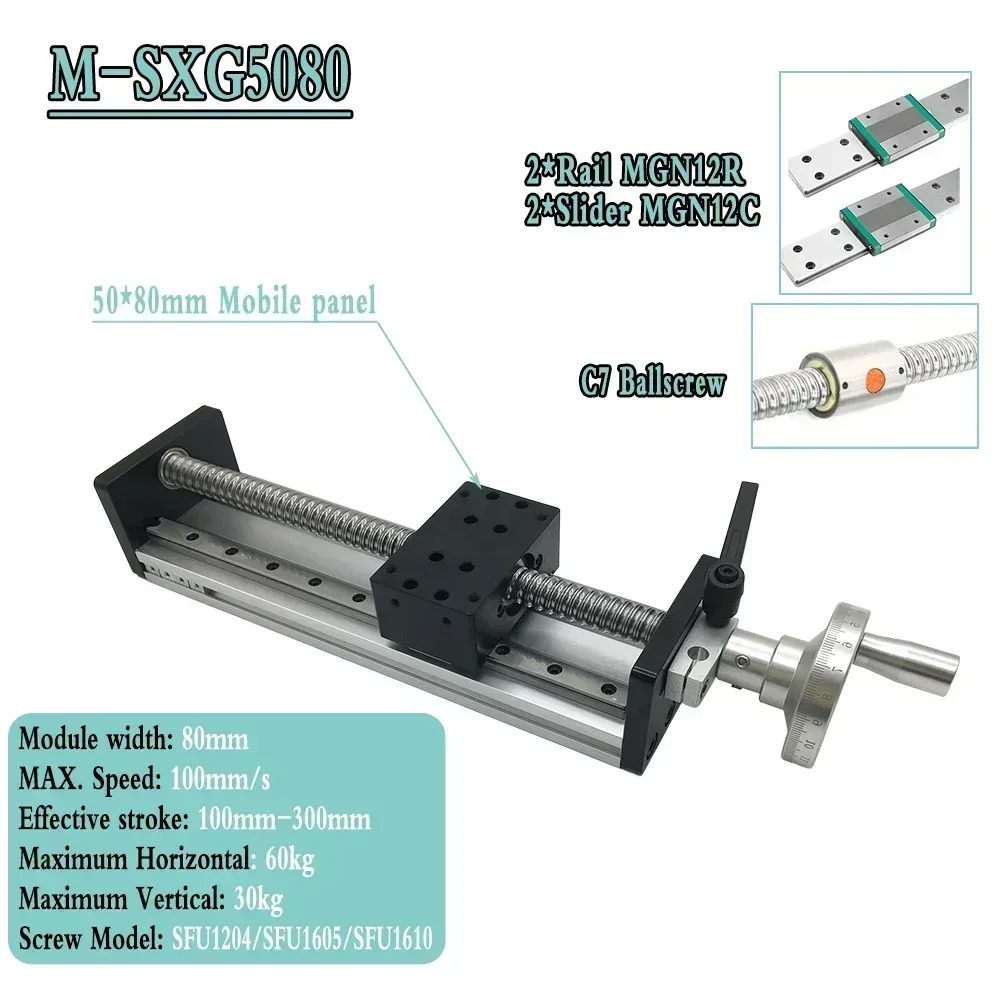

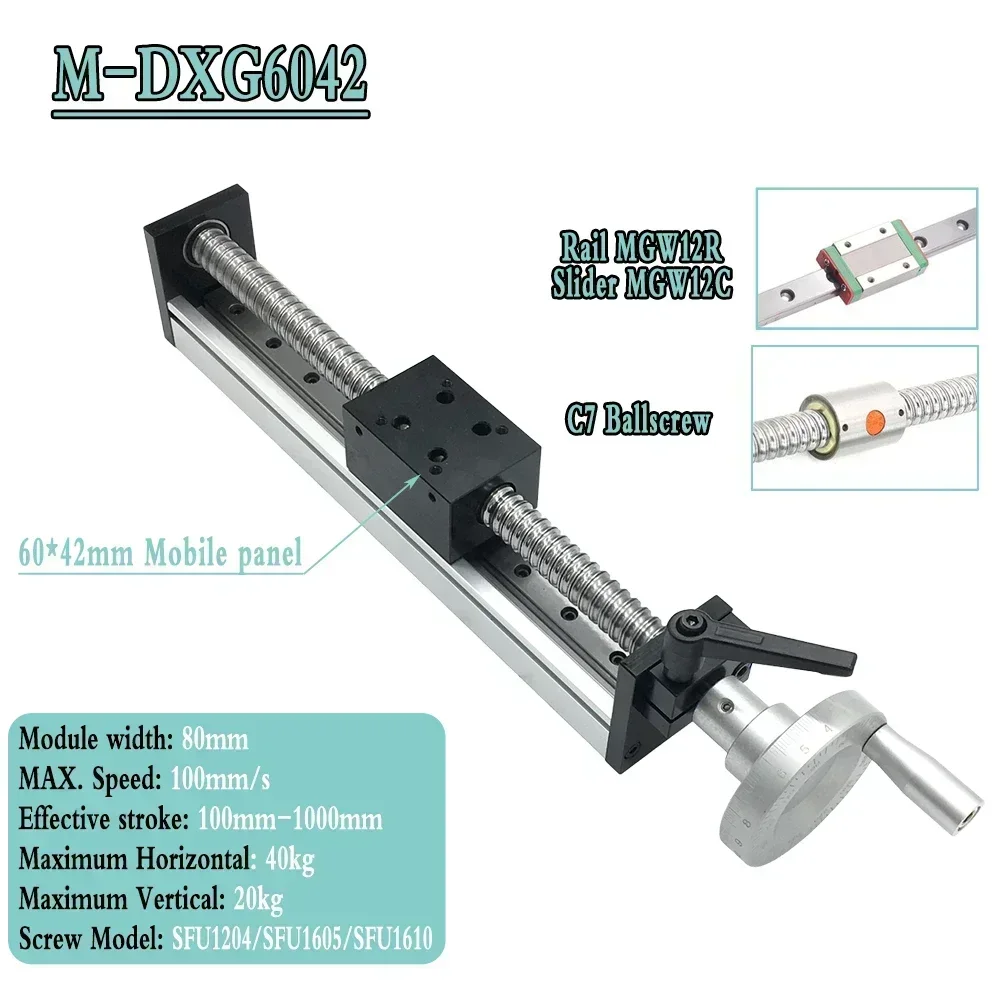

M-SXG5080 / Stroke 300mm, M-DXG6042 / Stroke 300mm, M-SXG5080 / Stroke 200mm, M-SXG5080 / Stroke 100mm, M-DXG6042 / Stroke 100mm, M-DXG6042 / Stroke 200mm
What’s in the box
- 1 × linear stage with handwheel, in the model and stroke you choose
