STEPPERONLINE Round NEMA 14 Stepper Motor, 0.9°, 9 Ncm

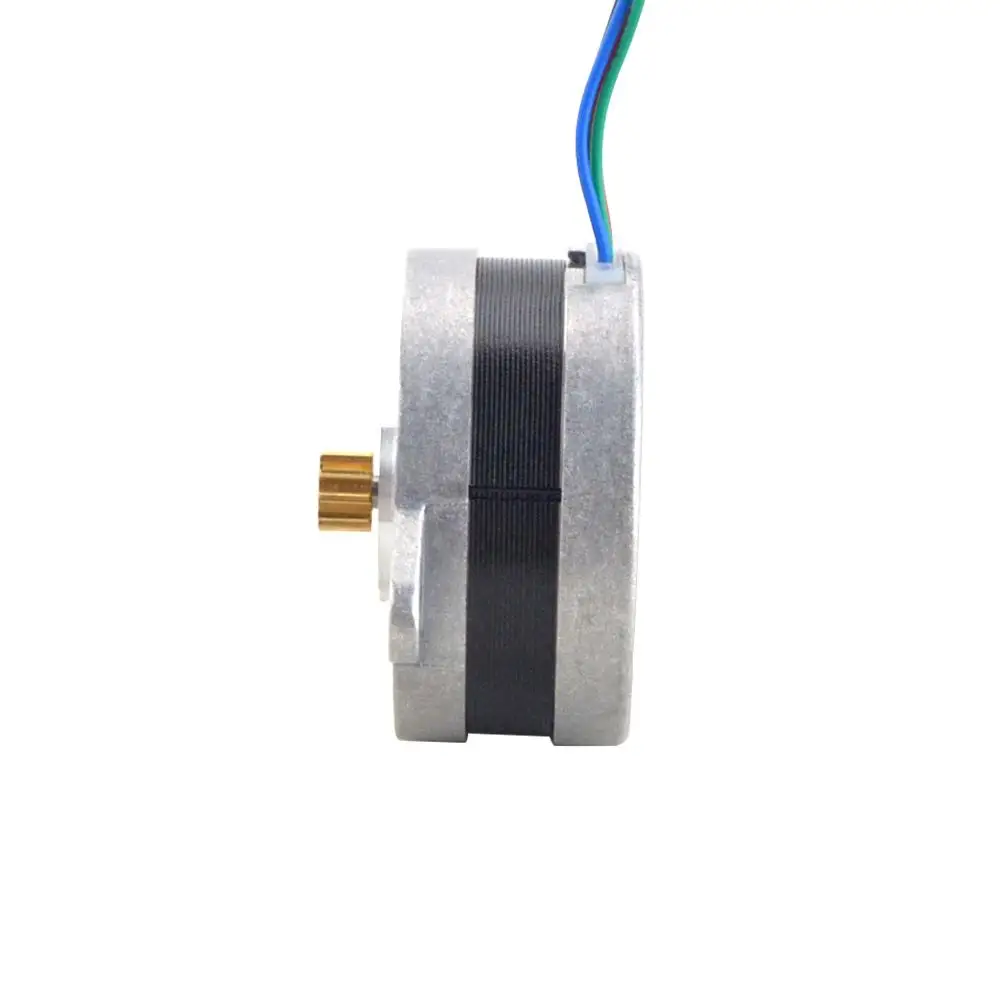

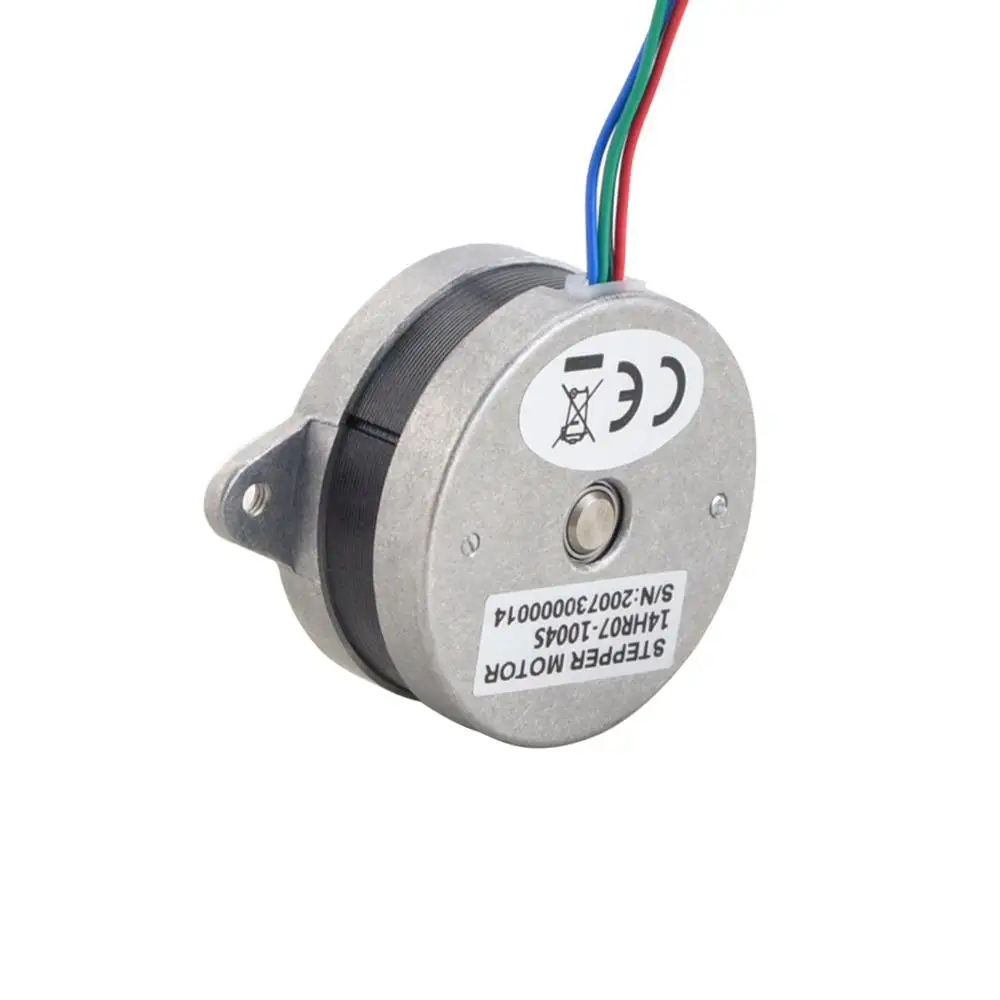

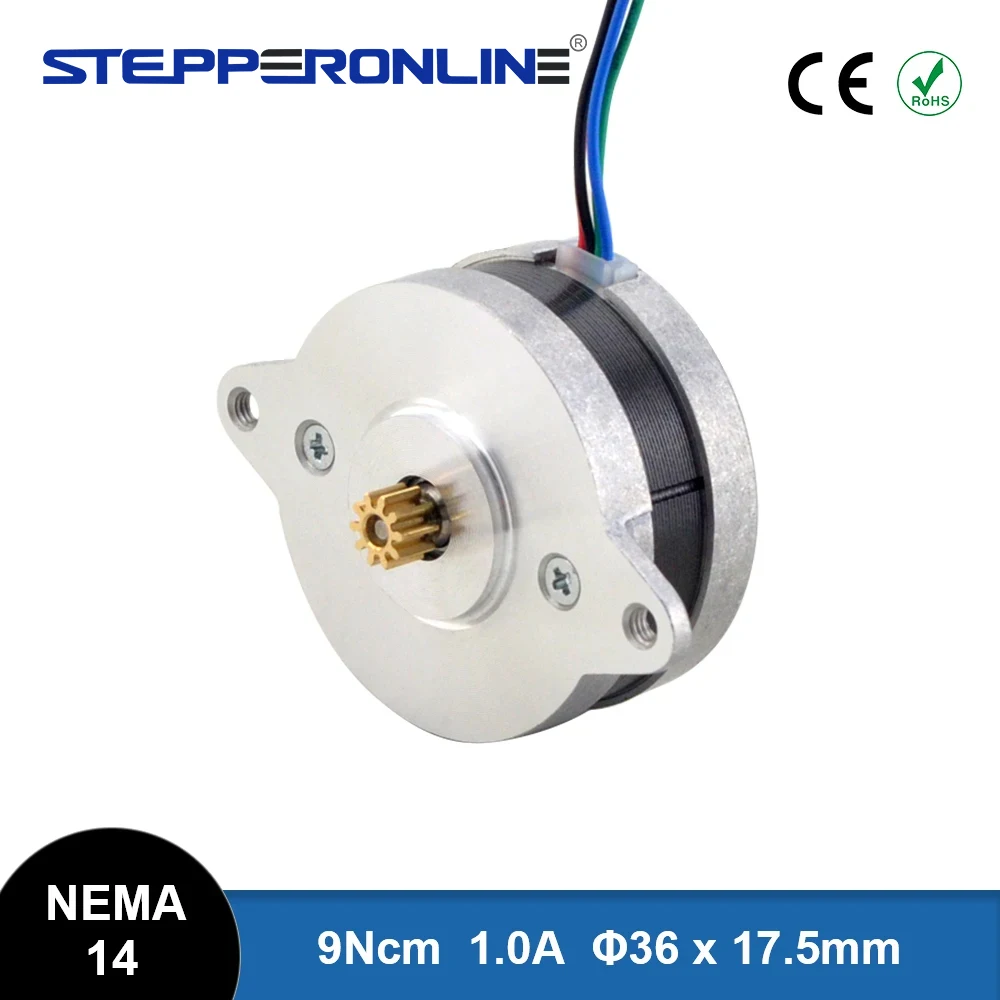

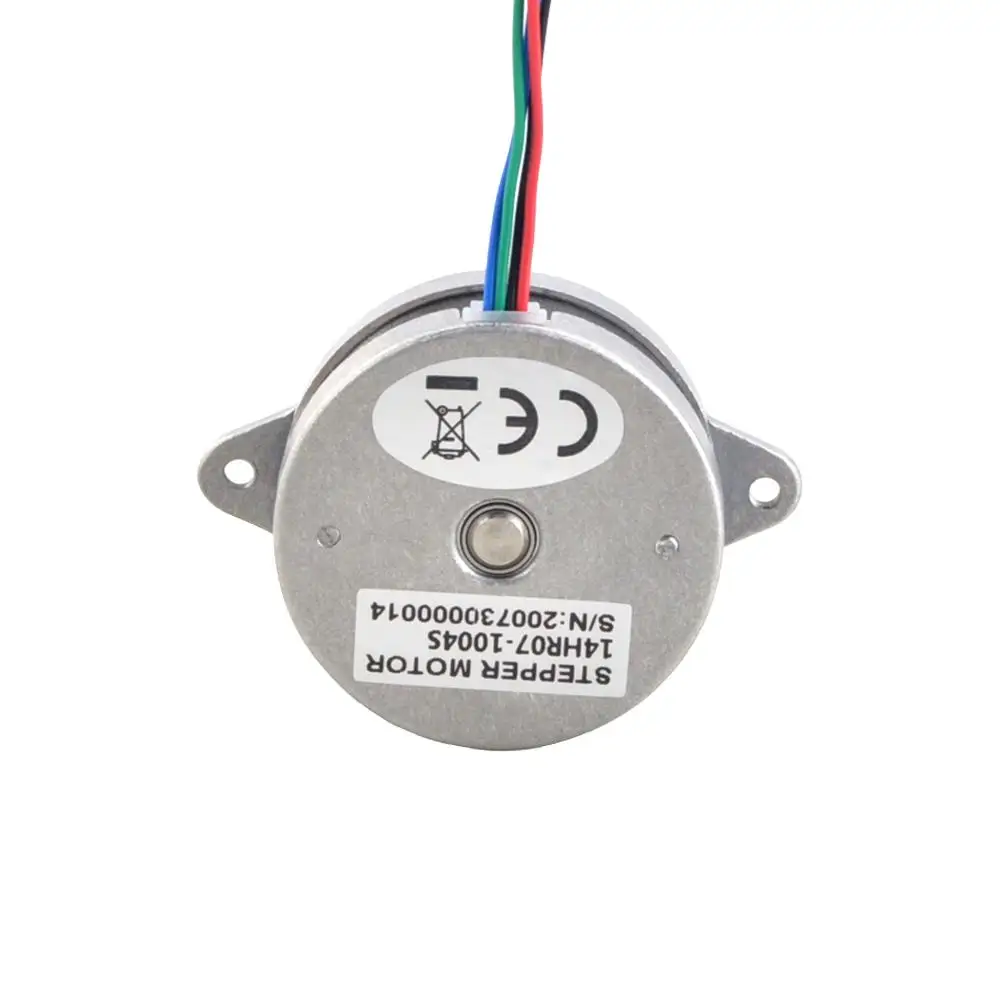

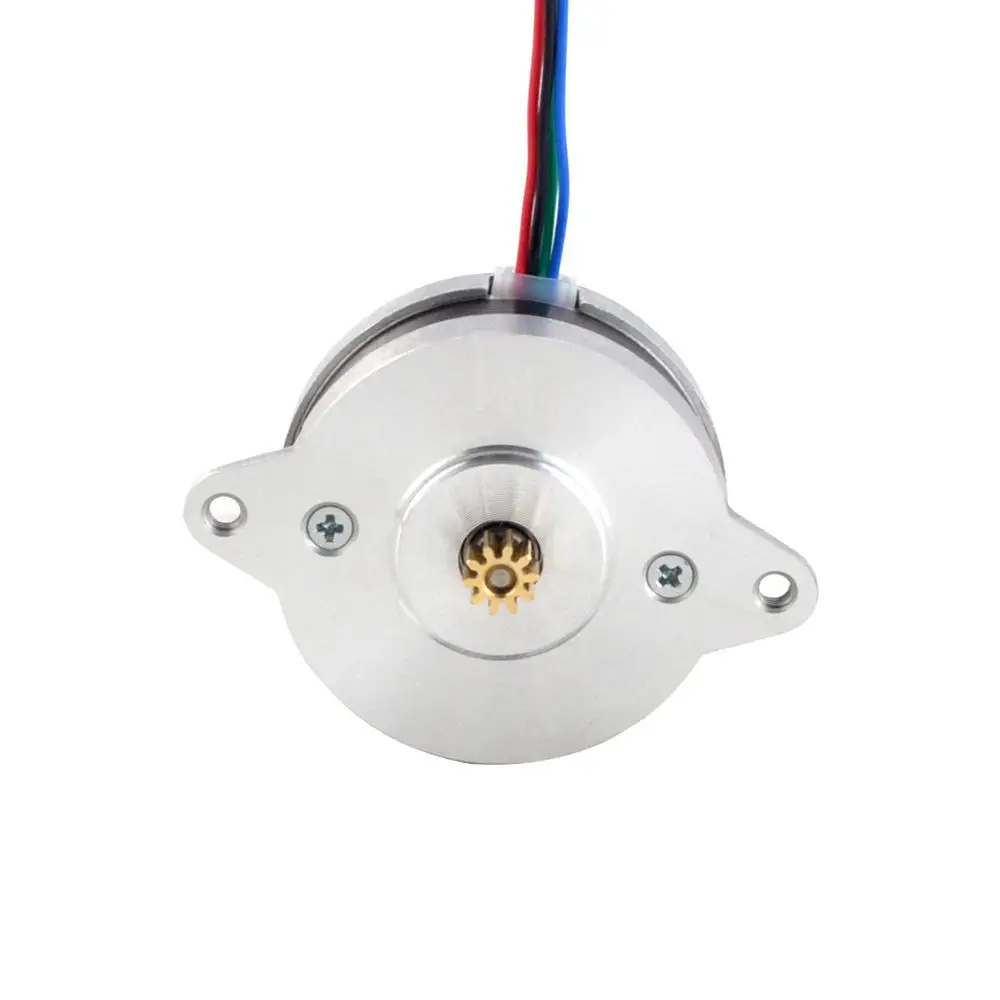

STEPPERONLINE round (pancake) NEMA 14 bipolar stepper motor, model 14HR07-1004VRN: 0.9° step, 9 N·cm (12.75 oz·in) holding torque, 1.0 A per phase, Φ36 × 17.5 mm, 4 wires, 500 mm leads. Popular for lightweight 3D printer extruders.
Specifications (from the manufacturer’s listing)
| EU LVD Voltage | Low voltage: Below 50Vac or 75Vdc |
|---|---|
| Step Angle(degrees) | 0.9 deg |
| Phase | 2 |
| Holding Torque | 9 Ncm(12.75 oz.in) |
| Current / Phase | 1.0 A |
| Frame Size | 36.5 x 36.5 x 17.5mm |
| Shaft Diameter | 2.5mm |
| Shaft Length | 4mm |
| Number of Leads | 4 |
| Rotor inertia | 6g-cm2 |
What’s in the box
- 1 × round NEMA 14 stepper motor
