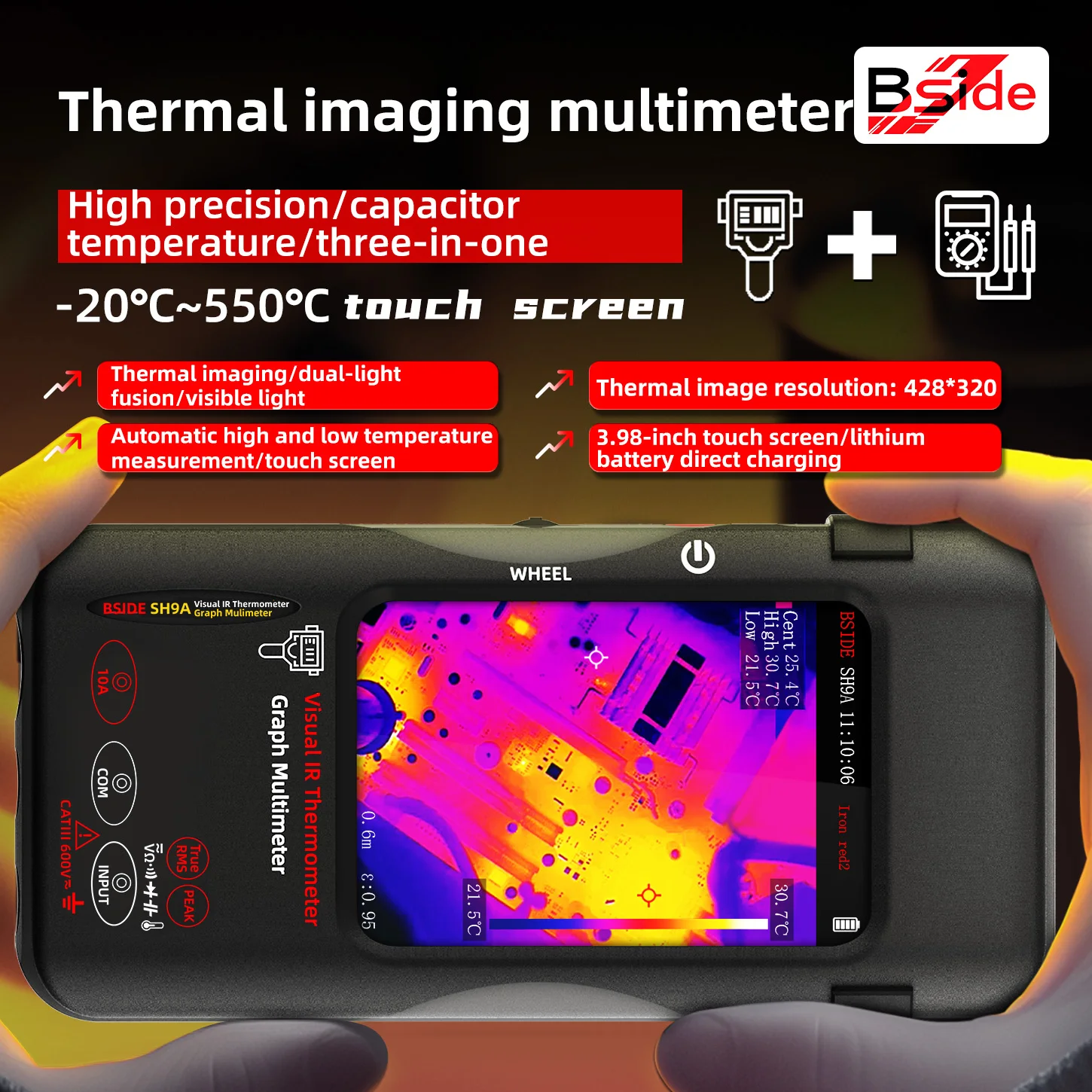

BSIDE SH9A Thermal Imaging Multimeter with Macro Lens

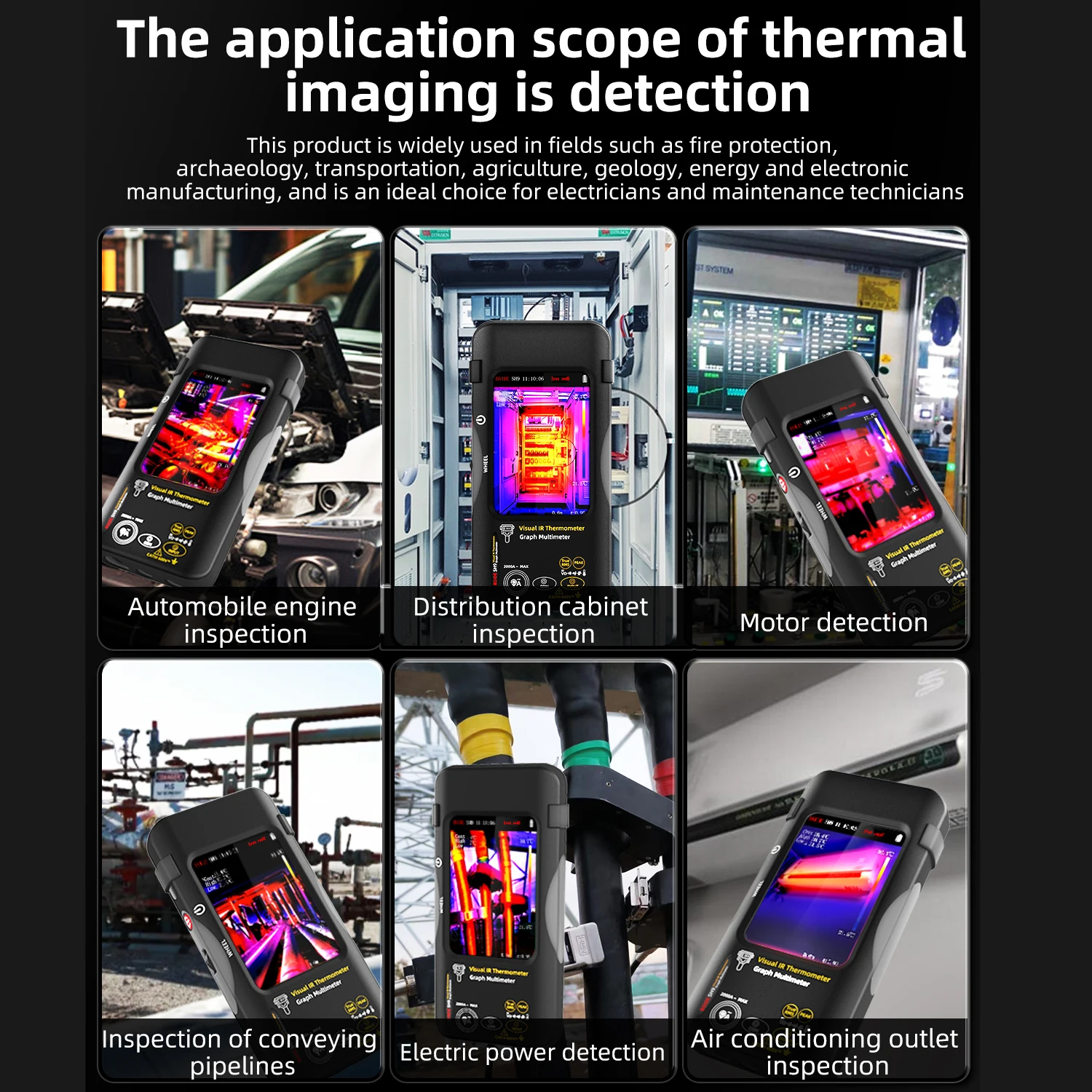

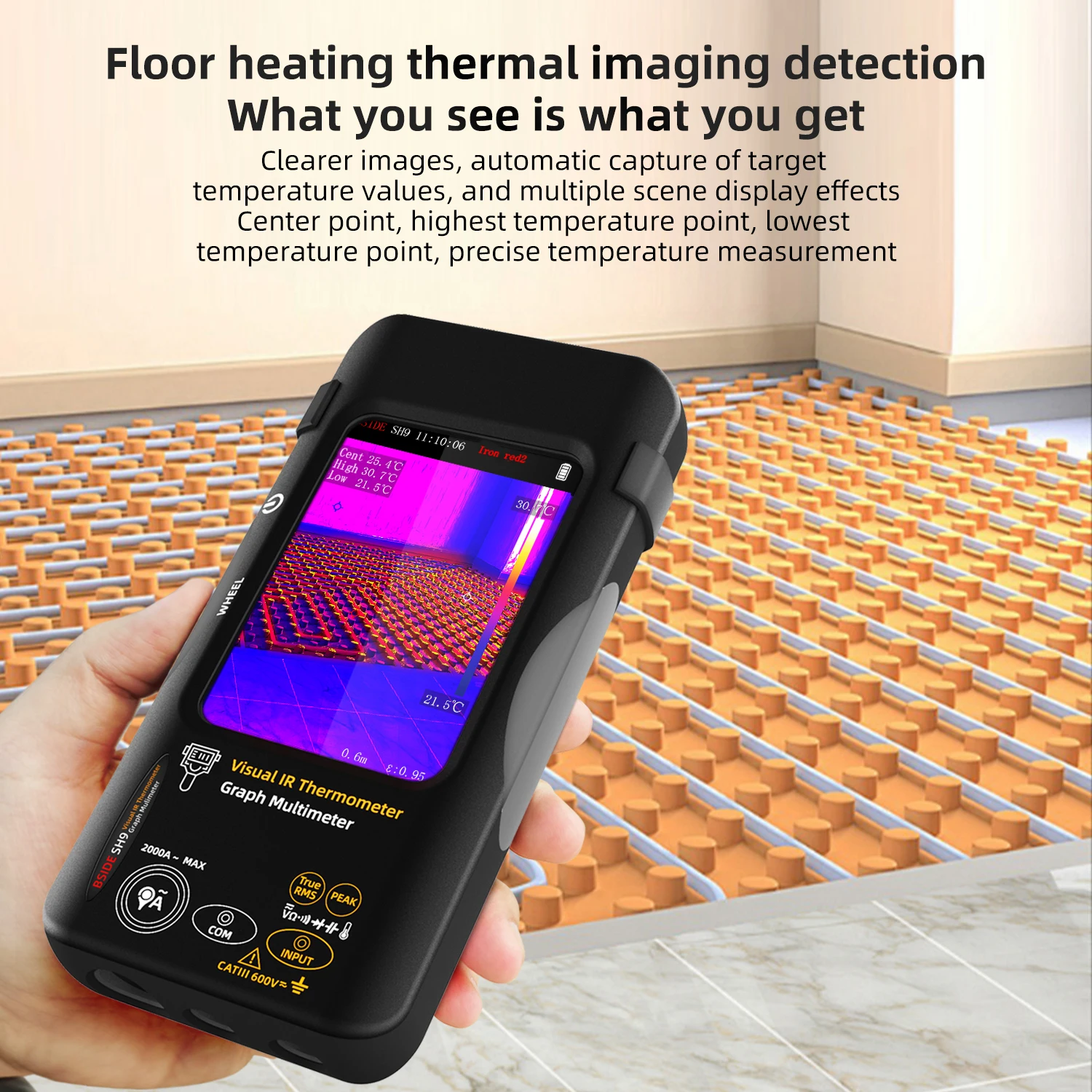

The BSIDE SH9A combines a thermal camera and a digital multimeter in one handheld unit. Find hot spots on circuit boards, electrical panels, motors, HVAC systems and floor heating, then measure voltage, current and resistance with the same tool. This kit includes the external macro lens, recommended by BSIDE for PCB and component inspection.

Thermal camera

• Thermal sensor: 256 × 192, shown on screen at 320 × 428 with image super-resolution (per the manufacturer’s description)
• Temperature range: -20 °C to 550 °C (-4 °F to 1022 °F), with high/low temperature alarm
• Frame rate: 25 Hz; thermal sensitivity 50 mK

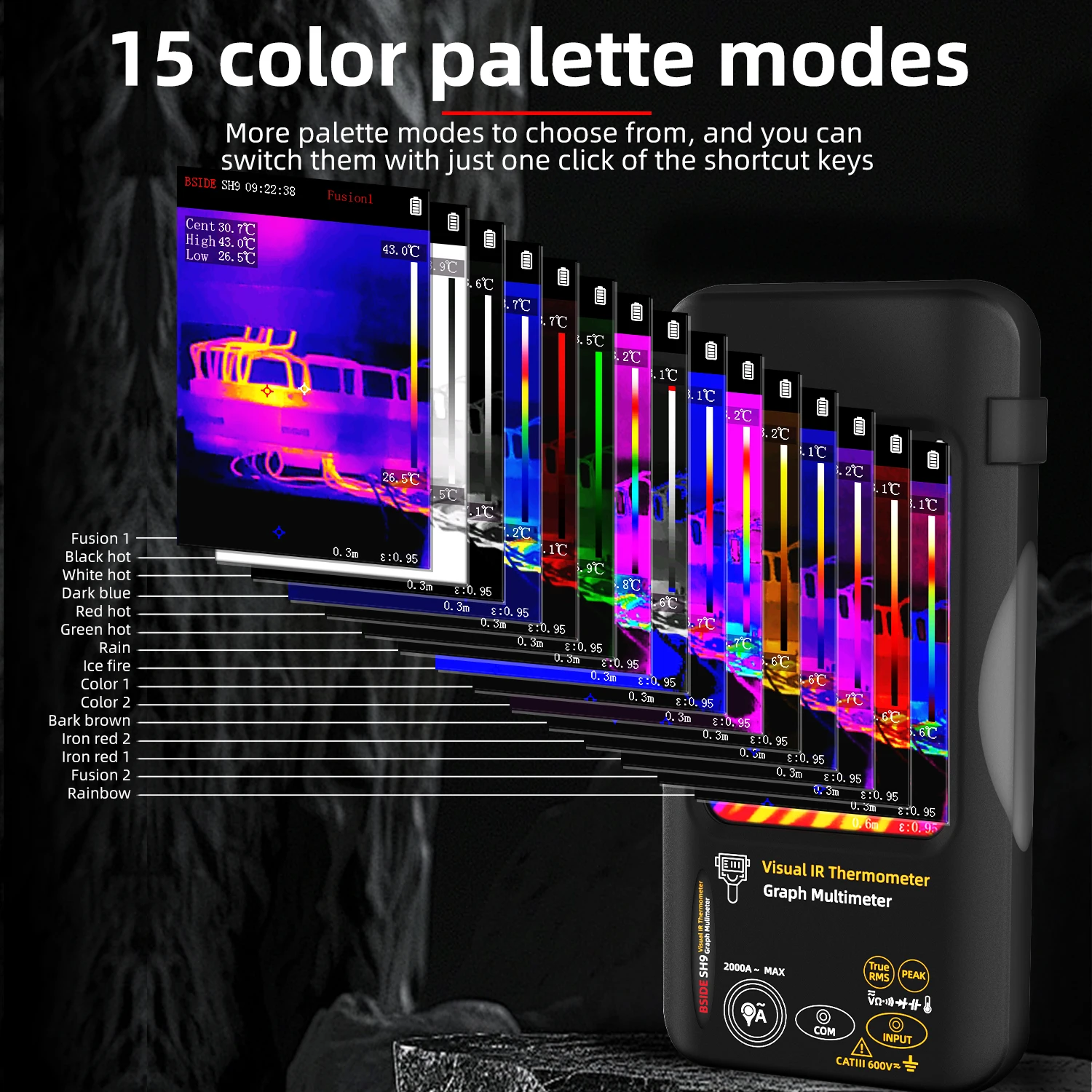

• Dual-light fusion of thermal and visible images, 15 color palettes, 3× digital zoom

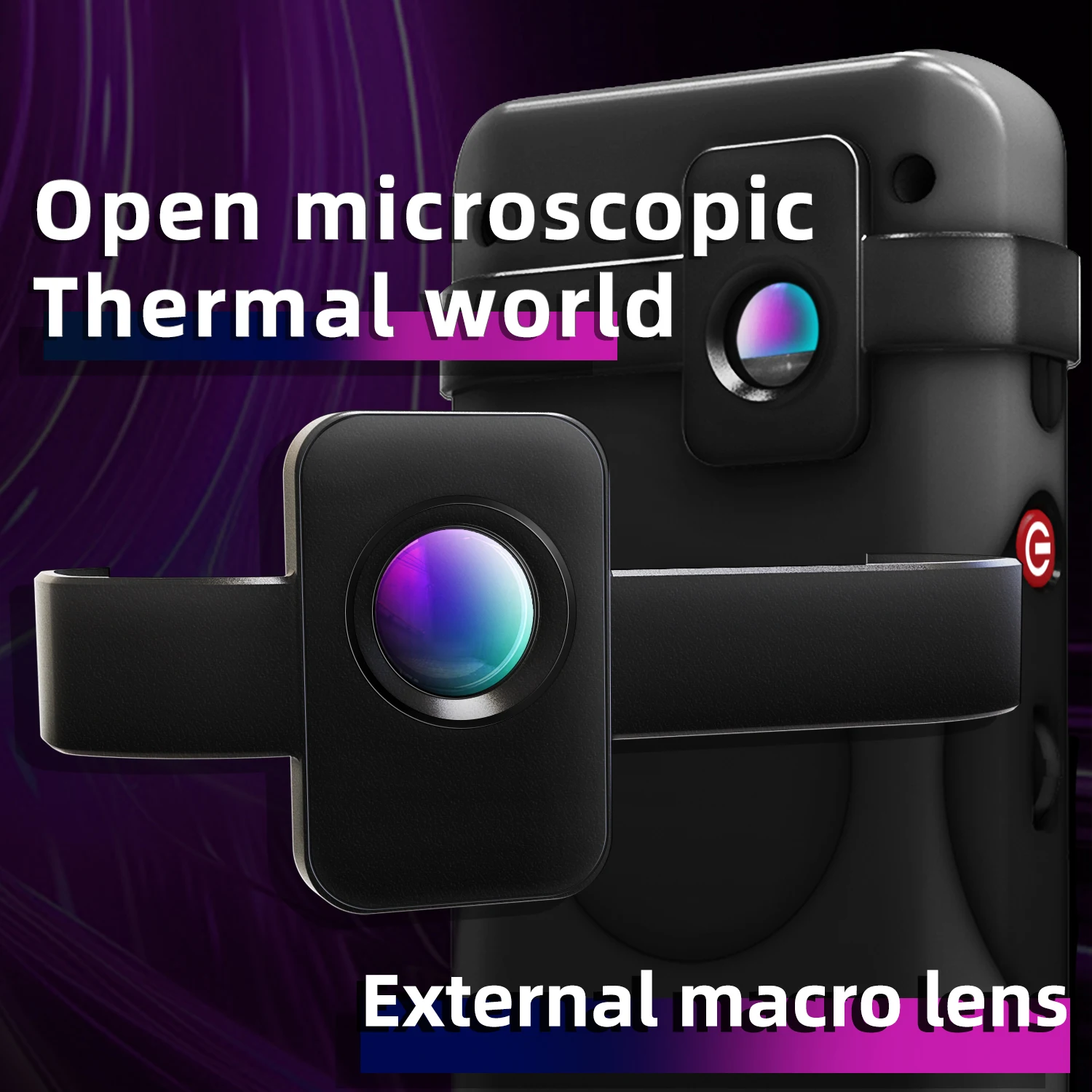

• Macro lens: 35 mm working distance, 0.3× magnification
• Stores up to 15,000 images

Multimeter

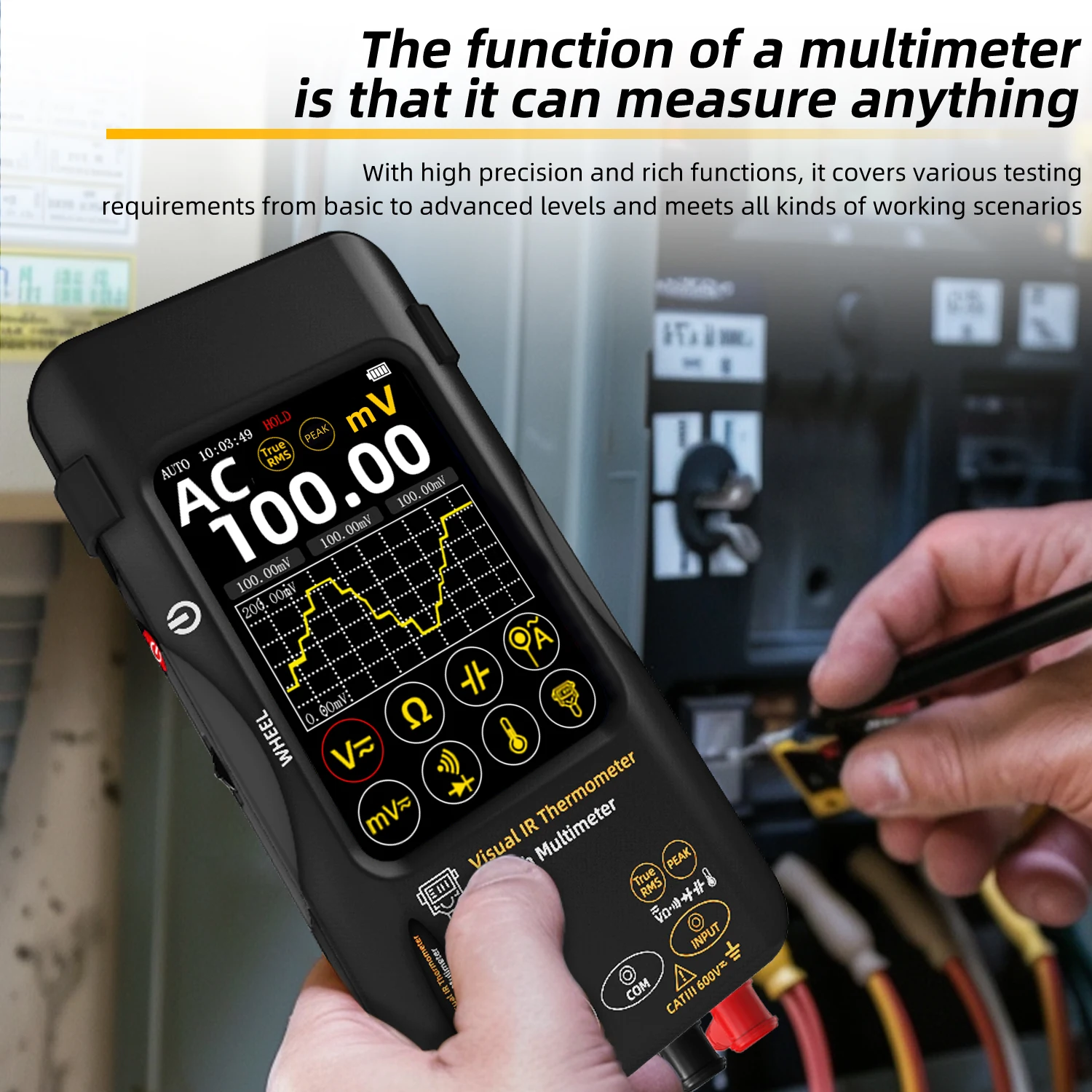

• 20,000-count display with trend (graph) mode
• AC voltage up to 750 V, DC voltage up to 1000 V
• SH9A version: measures current up to 10 A directly with the test leads (the SH9 uses a flexible current coil instead)
• Resistance, capacitance, diode, continuity, frequency, NCV and temperature (thermocouple)
• Max/min/average hold and saving of readings

General

• 3.98″ touchscreen (320 × 480)
• Built-in rechargeable 3.7 V 2500 mAh lithium battery, up to about 5 hours of continuous use

What’s in the box

• 1 × BSIDE SH9A thermal imaging multimeter
• 1 × external macro lens
• 1 × pair of test leads
• 1 × thermocouple temperature probe
• 1 × USB charging cable
• 1 × user manual

Safety

Always follow the manual and the safety ratings printed on the meter and test leads. Work on live electrical installations should be done by qualified people.
