Description

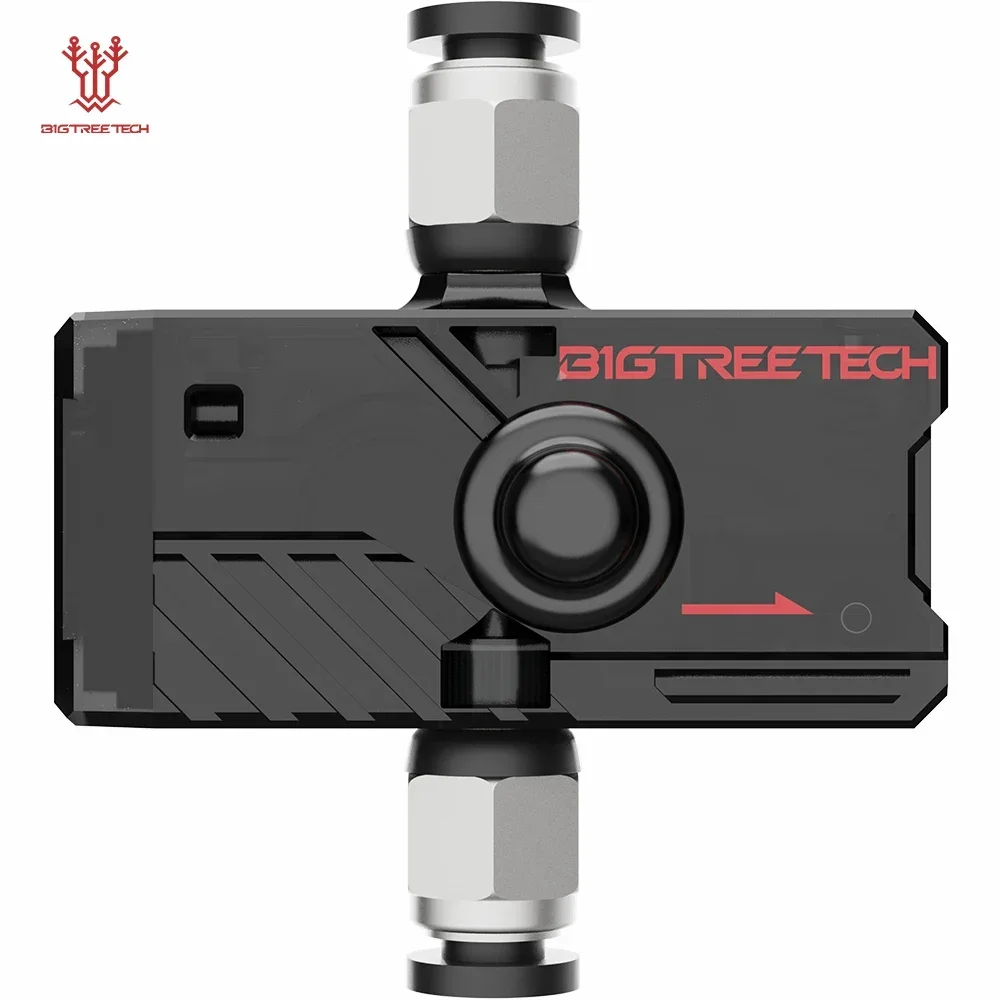

BIGTREETECH SFS V2.0 Smart Filament Sensor
BIGTREETECH SFS V2.0 smart filament sensor for 1.75 mm filament. It detects filament runout and jams so the printer can pause before a print fails.
Specifications (from the manufacturer’s listing)
| Item Type | Module |
|---|---|
| SFS V2.0 Filament Diameter | 1.75MM |
| SFS V2.0 Detection Length | length, may need adjustment) |
| SFS V2.0 Rated Voltage | 3.3V-5V |
| SFS V2.0 Working Temperature | -10 to 50 ℃ |
| SFS V2.0 Working Humidity | 10% to 90% |
| SFS V2.0 Dimensions | 53.1 x 30.3 x 27.3 mm |
| SFS V2.0 Mounting Hole Spacing | 12.4 x 24.7 mm |
| SFS V2.0 Weight | 36 g |
| Operating Principle | Encoder+Pulley Set+Micro Switch |

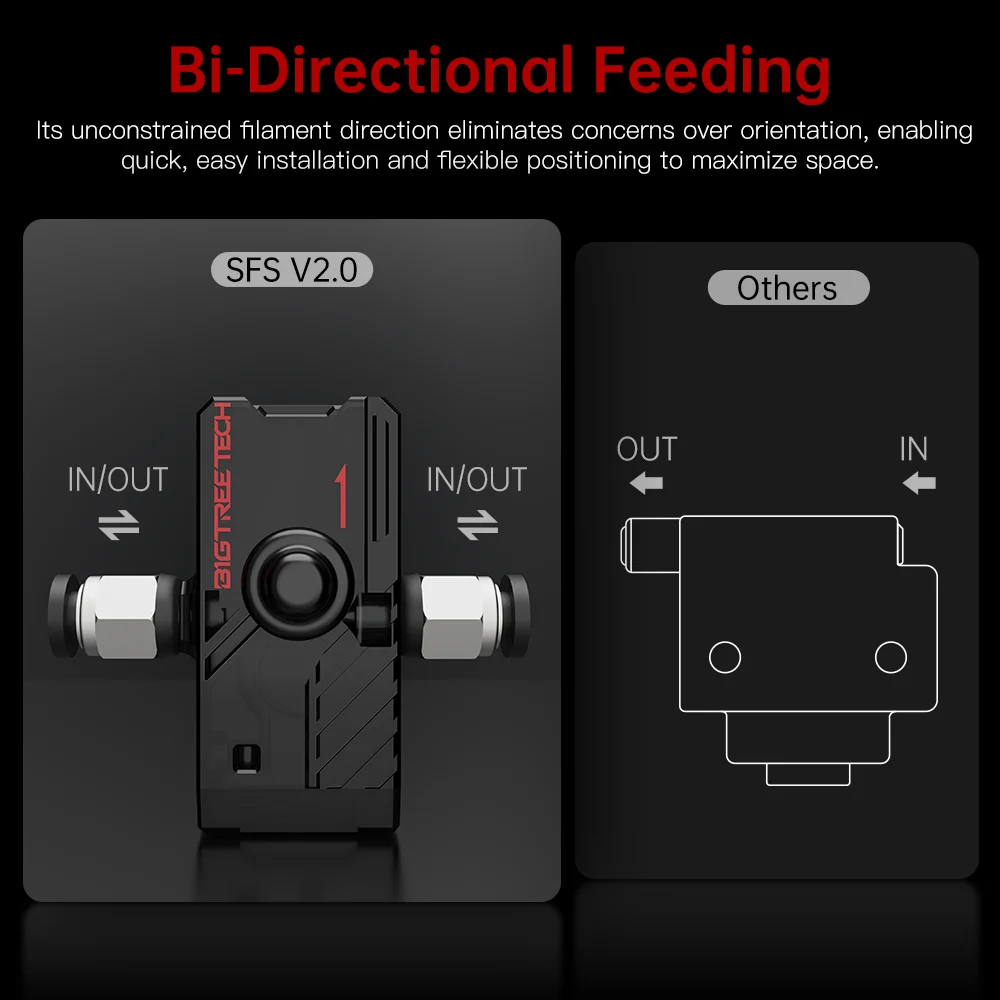

| Bi-Directional Feeding | YES |

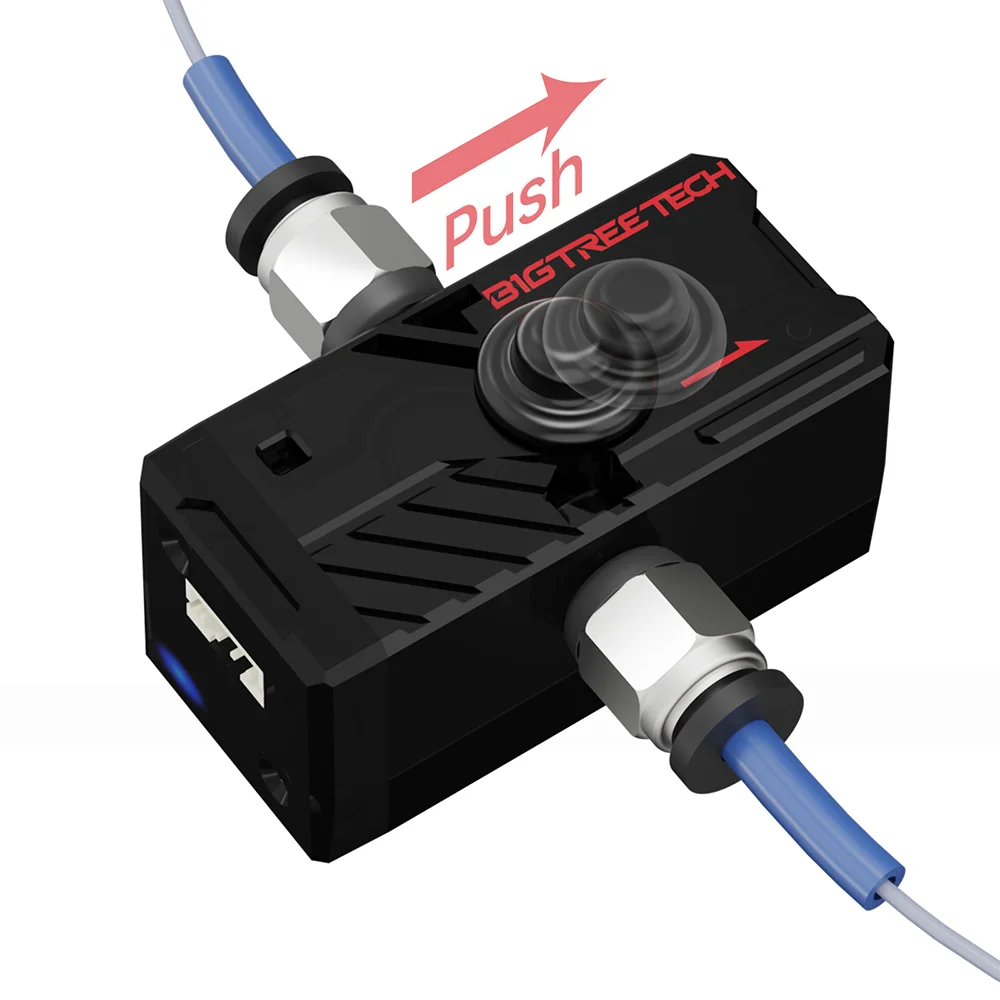

| Filament Feeding Lever | YES |
| Status Light | YES |
| Mounting Holes | Three mounting holes on the back |

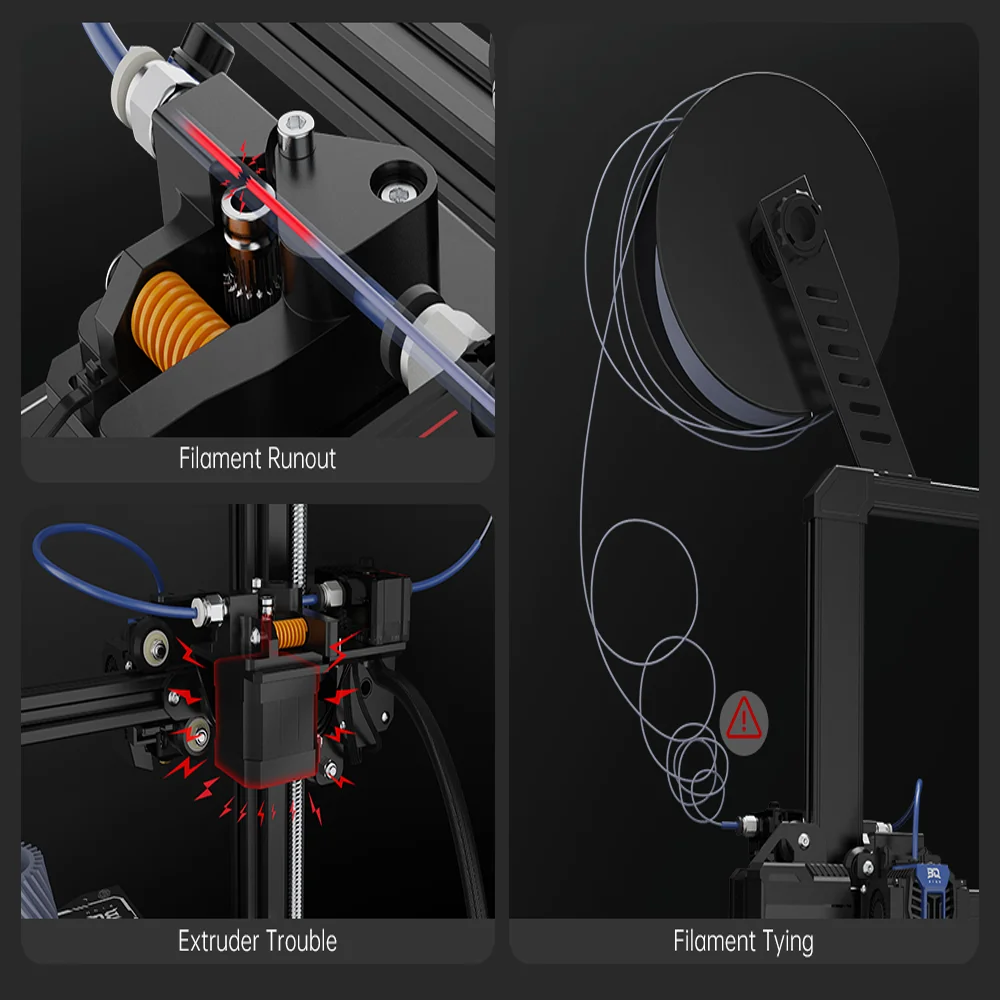

| Detections1 | Nozzle Clogging |
| Detections2 | Filament Runout |

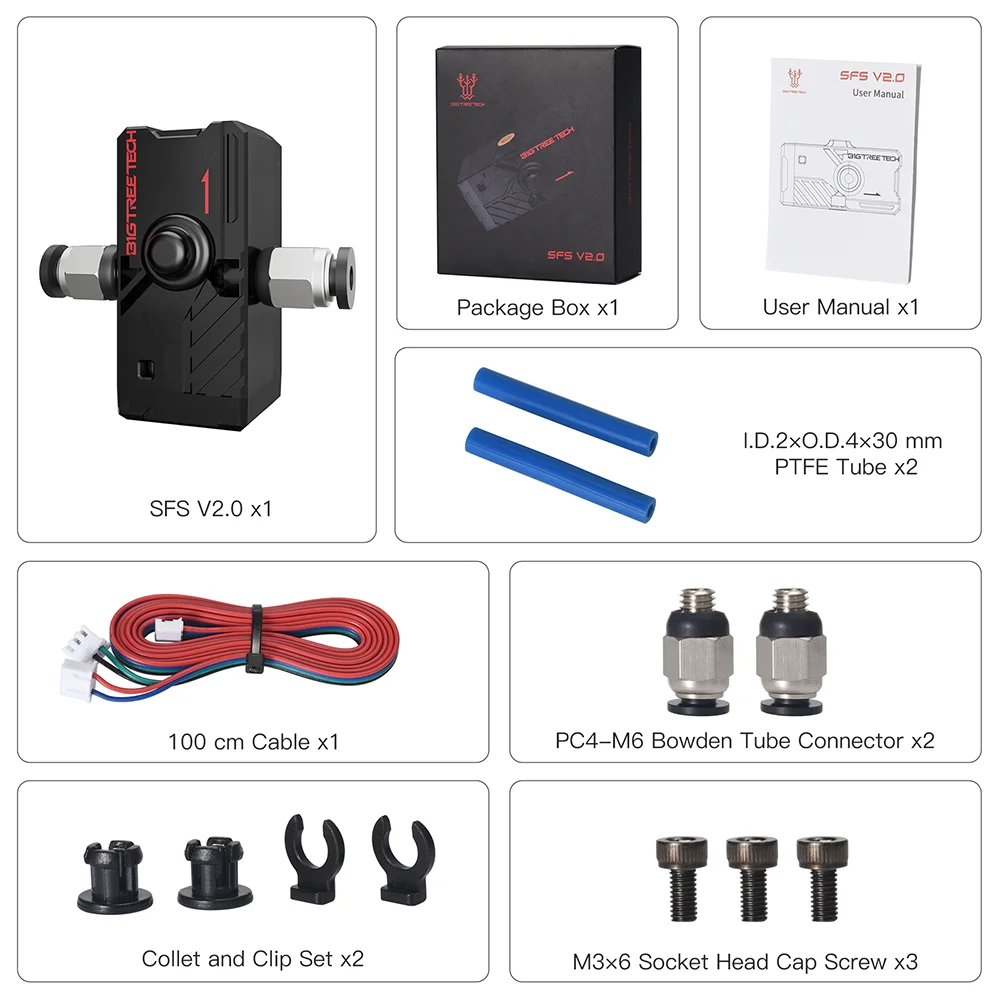

What’s in the box
- 1 × BIGTREETECH SFS V2.0 smart filament sensor with the cable and fittings shown in the package photo
Shipping
Ships from a warehouse in the United States. Free shipping. Estimated delivery for this item: 3–10 business days.
Reviews
There are no reviews yet.
